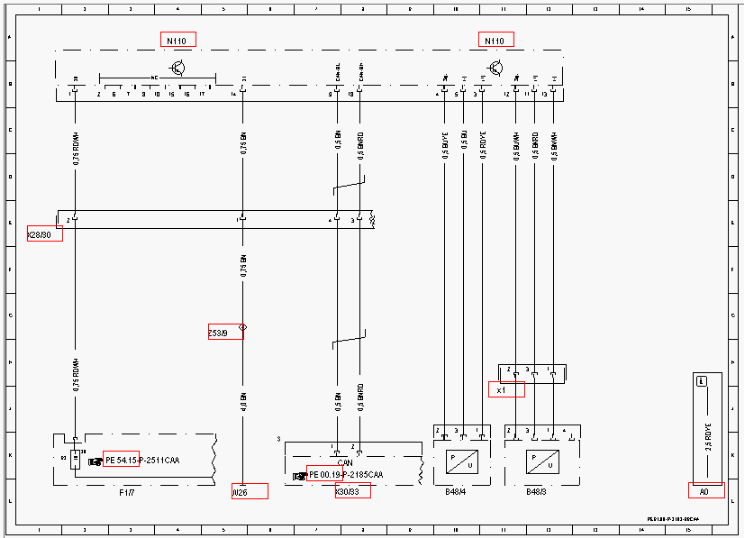

Wiring diagram for Weight Sensing System (WSS) control unit - PE91.60-P-2102-99CAA
MODEL 216.3 Control unit N110
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| B48/3 | Belt tension sensor | 12L |
| B48/3x1 | Belt tension sensor connector | 11J |
| B48/4 | Seat occupied recognition pressure sensor | 10L |
| F1/7 | Left instrument panel fuse box | 3L |
| F1/7f93 | Fuse 93 | 1K |
| N110 | Weight Sensing System (WSS) control unit | 4A |
| N110 | Weight Sensing System (WSS) control unit | 11A |
| W26 | Ground (restraint systems control module) | 5L |
| X28/30 | Passenger-side FFS [RBA]/seat airbag separation point | 1E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 7L |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | 5G |
