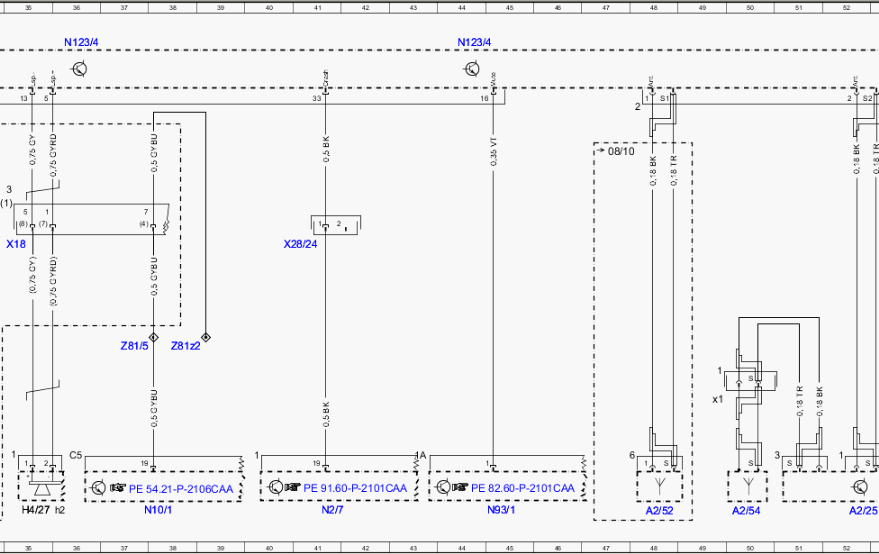

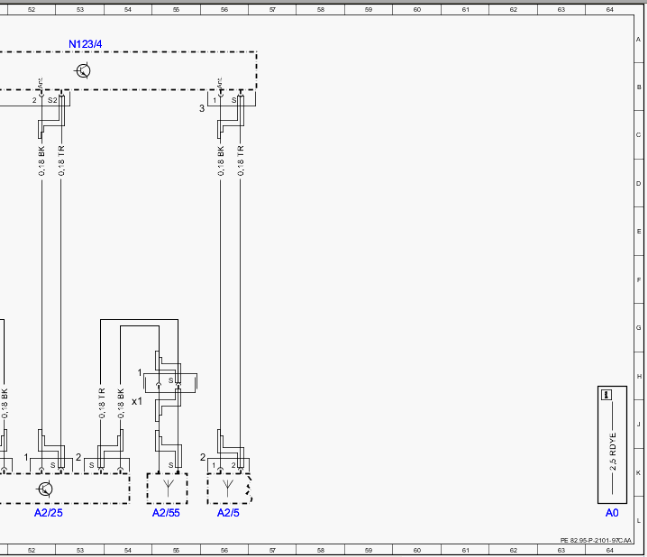

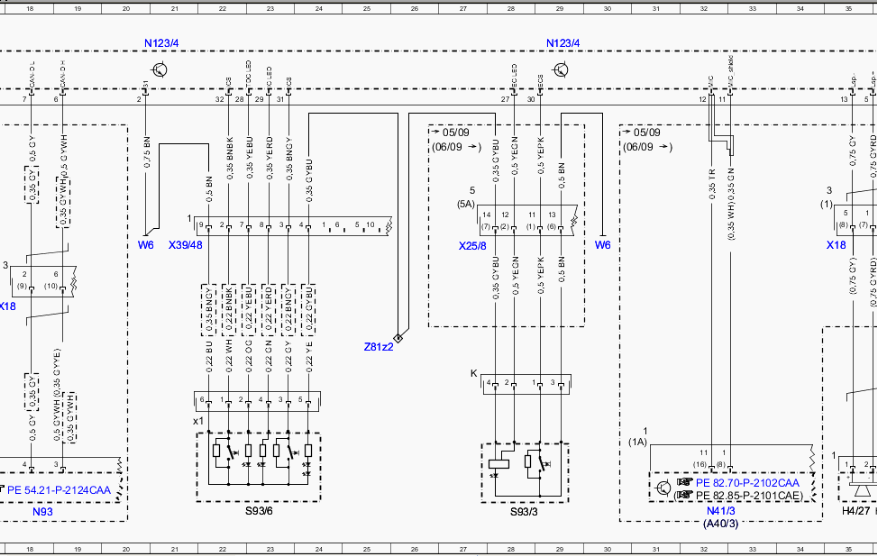

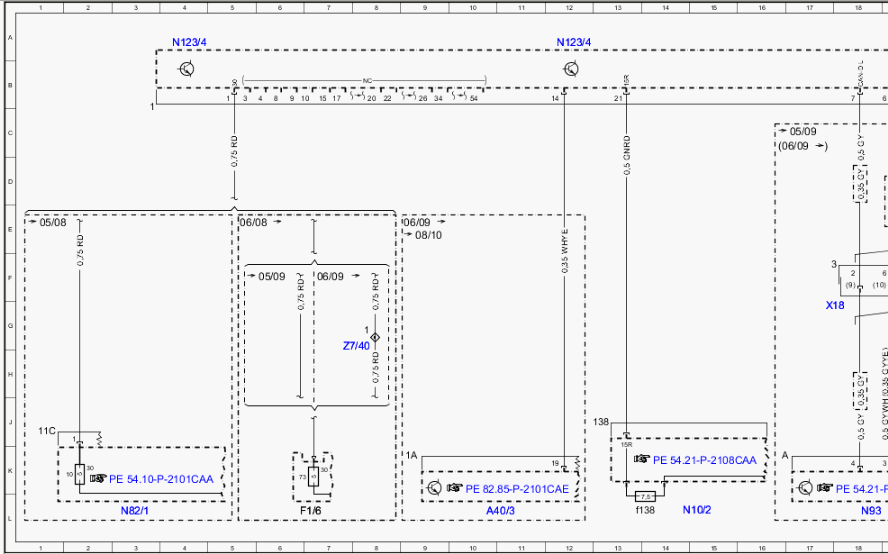

Wiring diagram for emergency call system control unit - PE82.95-P-2101-97CAA
MODEL 216.3 with CODE (359) TELE AID emergency call system control unit N123/4
| Code | Designation | Location |
|---|---|---|
| A0 | Color code key | 64L |
| A2/25 | Emergency call system antenna splitter | 52L |
| A2/5 | Antenna splitter | 56L |
| A2/52 | Emergency call antenna | 48L |
| A2/54 | Emergency call system left backup antenna | 50L |
| A2/54x1 | Left backup antenna connector, emergency call system | 49H |
| A2/55 | Emergency call system right backup antenna | 55L |
| A2/55x1 | Right backup antenna connector, emergency call system | 54H |
| A40/3 | COMAND control unit | 32L |
| A40/3 | COMAND control unit | 10L |
| F1/6 | Right instrument panel fuse box | 7L |
| F1/6f73 | Fuse 73 | 6K |
| H4/27 | Center cockpit speaker (centerfill) | 35L |
| H4/27h2 | Center cockpit emergency speaker (centerfill) | 36L |
| N10/1 | Front SAM control unit with fuse and relay module | 38L |
| N10/2 | Rear SAM control unit with fuse and relay module | 15L |
| N10/2f138 | Fuse 138 | 14L |
| N123/4 | Emergency call system control unit | 12A |
| N123/4 | Emergency call system control unit | 4A |
| N123/4 | Emergency call system control unit | 21A |
| N123/4 | Emergency call system control unit | 29A |
| N123/4 | Emergency call system control unit | 53A |
| N123/4 | Emergency call system control unit | 36A |
| N123/4 | Emergency call system control unit | 44A |
| N2/7 | Restraint systems control unit | 41L |
| N41/3 | Voice control system (VCS [SBS]) control unit | 32L |
| N82/1 | Vehicle power supply control unit | 3L |
| N82/1f10 | Fuse 10 | 2K |
| N93 | Central gateway control unit | 18L |
| N93/1 | Audio tuner control unit | 45L |
| S93/6 | MB-Info and telediagnosis button group | 23L |
| S93/6x1 | MB-Info and telediagnosis button group connector | 21J |
| W6 | Ground (left wheelhouse in luggage compartment) | 20E |
| W6 | Ground (left wheelhouse in luggage compartment) | 30E |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 17G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 35E |
| X25/8 | Overhead control panel and FFS [RBA] connector | 27E |
| X28/24 | Interior/telematics connector | 41E |
| X39/48 | Breakdown assistance/info button connector | 21E |
| Z7/40 | Tml. 30 connector sleeve | 7G |
| Z81/5 | Circuit 58d COC connector sleeve | 37G |
| Z81z2 | Circuit 58d connector sleeve | 25G |
| Z81z2 | Circuit 58d connector sleeve | 38G |
