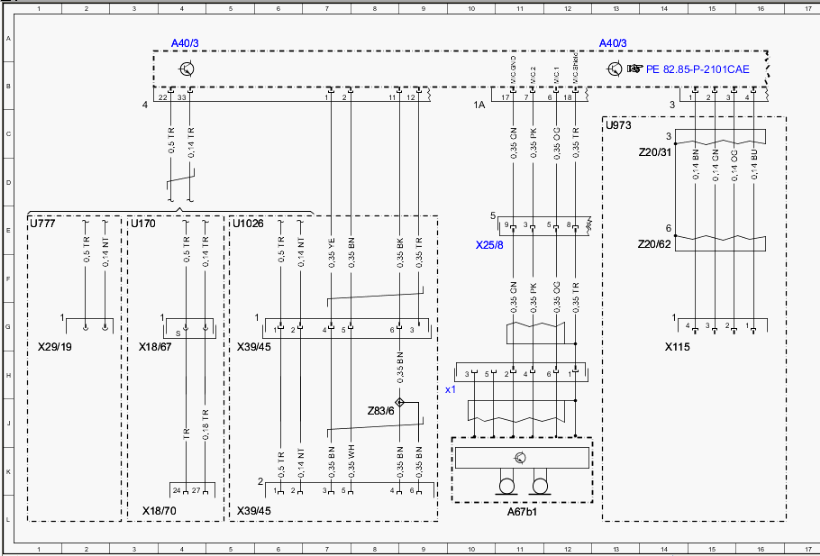

Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97CAG
MODEL 216.3 except CODE (498) Japan version as of model year 2010 /YoM 09, HIGH Class, control unit A40/3, Sheet 2
| Code | Designation | Location |
|---|---|---|
| A0 | Color code key | 23L |
| A40/3 | COMAND control unit | 13A |
| A40/3 | COMAND control unit | 4A |
| A67b1 | Hands-free system microphone group | 11L |
| A67b1x1 | Hands-free system microphone group connector | 10H |
| U1026 | Not valid for media interface | 5E |
| U170 | Valid for media interface | 3E |
| U777 | Valid navigation | 1E |
| U973 | Valid for USB interface | 13C |
| X115 | USB (Universal Serial Bus) connector | 14G |
| X18/67 | Media interface connector 1 | 3G |
| X18/70 | Media interface connector | 3L |
| X25/8 | Overhead control panel and FFS [RBA] connector | 10E |
| X29/19 | F-BAS signal connector (COMAND to navigation/China) | 1G |
| X39/45 | Walkman separation point | 5L |
| X39/45 | Walkman separation point | 5G |
| Z20/31 | Tracer wire connector sleeve | 14C |
| Z20/62 | Screening end connector sleeve | 14E |
| Z83/6 | AUX jack shielding connector sleeve | 8J |
