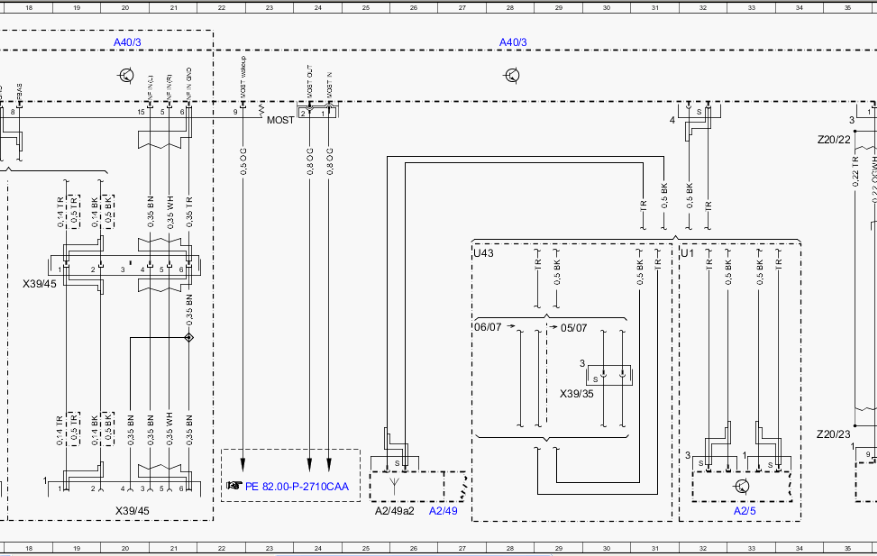

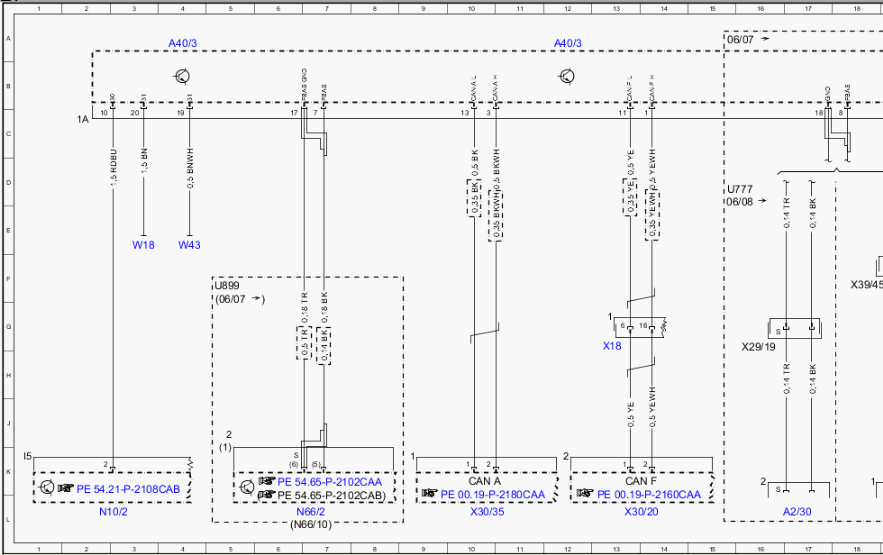

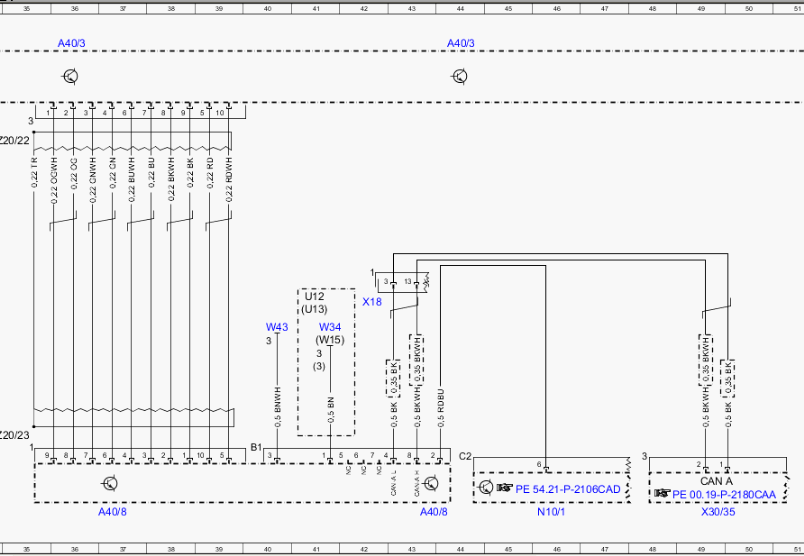

Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97CAA
MODEL 216.3 with CODE (526) COMAND with single DVD drive (without navigation) with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (530) COMAND APS USA (with navigation system) except CODE (498) Japan version
| Code | Designation | Location |
|---|---|---|
| A0 | Color code key | 56L |
| A2/30 | Navigation processor | 17L |
| A2/49 | Telephone and GPS antenna | 26L |
| A2/49a2 | GPS antenna | 25L |
| A2/5 | Antenna splitter | 33L |
| A40/3 | COMAND control unit | 4A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 36A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 52A |
| A40/8 | COMAND display | 37L |
| A40/8 | COMAND display | 43L |
| A90/1 | TV combination tuner (analog/digital) | 53L |
| CAN A | Telematics CAN | 10K |
| CAN A | Telematics CAN | 49K |
| CAN F | Central CAN | 13K |
| N10/1 | Front SAM control unit with fuse and relay module | 46L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N66/10 | Backup camera voltage supply module | 6L |
| N66/2 | Backup camera voltage supply module | 6L |
| U1 | Valid for {{USA}} | 32E |
| U12 | Valid for left-hand drive vehicles | 41F |
| U13 | Valid for right-hand drive vehicles | 41G |
| U193 | Valid for TV and Video | 51F |
| U43 | Valid for ECE | 27E |
| U777 | Valid for navigation | 15D |
| U899 | Valid for backup camera | 5F |
| W15 | Power ground (electronics) | 41G |
| W18 | Ground (left front seat crossmember) | 3E |
| W34 | Ground (left footwell) | 41G |
| W43 | Ground (reference, image transmission systems) | 4E |
| W43 | Ground (reference, image transmission systems) | 40G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 13G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 42F |
| X29/19 | F-BAS signal connector (COMAND to navigation/China) | 16G |
| X30/20 | Central CAN voltage distributor connector | 13L |
| X30/35 | Telematics CAN voltage distributor connector | 10L |
| X30/35 | Telematics CAN voltage distributor connector | 49L |
| X39/35 | GPS antenna connector | 29H |
| X39/45 | Walkman separation point | 18F |
| X39/45 | Walkman separation point | 20L |
| Z20/22 | Cable end insulation not stripped, placed inside insulated tubing | 34C |
| Z20/23 | Cable end insulation not stripped, placed inside insulated tubing | 35J |
