Reversing camera (RFK), block diagram - GF54.65-P-0005-02LEJ

MODEL 221.0 /0, 216.3 with CODE (218) Backup camera with CODE (498) Japan version as of Model Year 2009 /AEJ 08

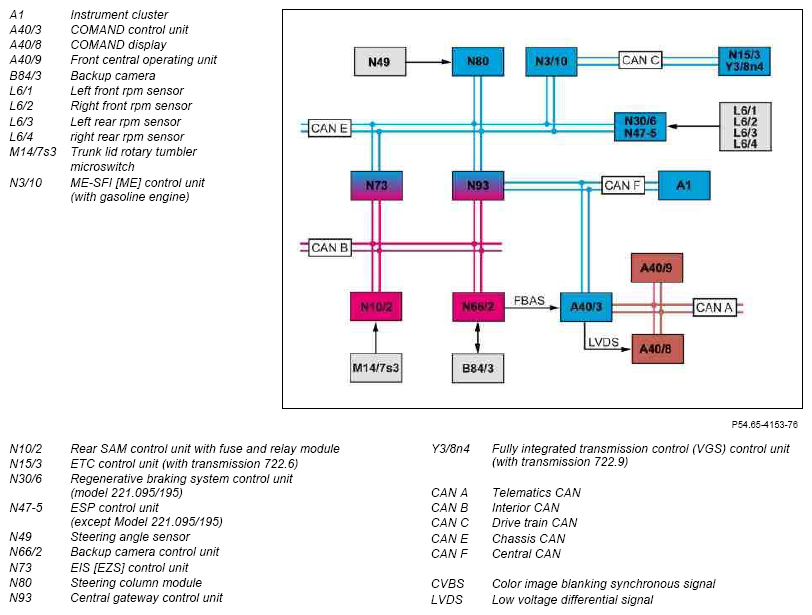

Fig 1: Reversing Camera Block Diagram

Courtesy of MERCEDES-BENZ USA
