Reversing camera (RFK), block diagram - GF54.65-P-0005-02LE

MODEL 216.3, 221.0 /1 with CODE (218) Backup camera except CODE (498) Japan version as of Model Year 2009 /AEJ 08

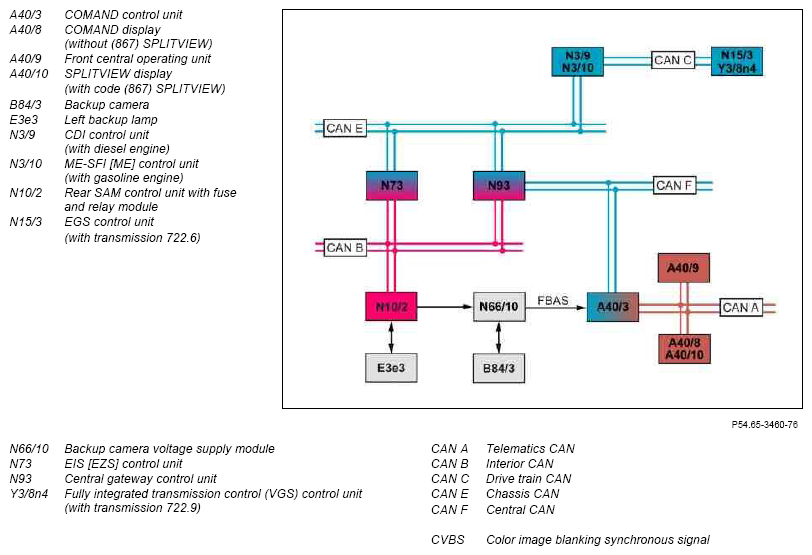

Fig 1: Reversing Camera Block Diagram

Courtesy of MERCEDES-BENZ USA
