Parktronic system (PTS), location of components - GF54.65-P-0001-02SX

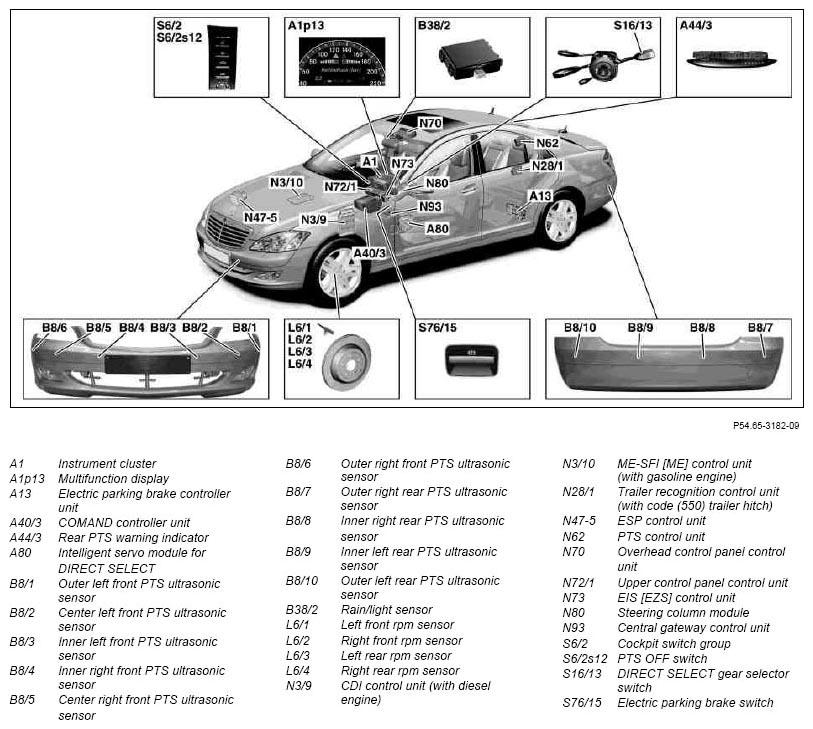

Fig 1: Locating Parktronic System Components

G07301193

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
