PARKTRONIC location of components - GF54.65-P-0003-01LE

MODEL 216.3 up to 31.8.10 as of Model Year 2009 /AEJ 08

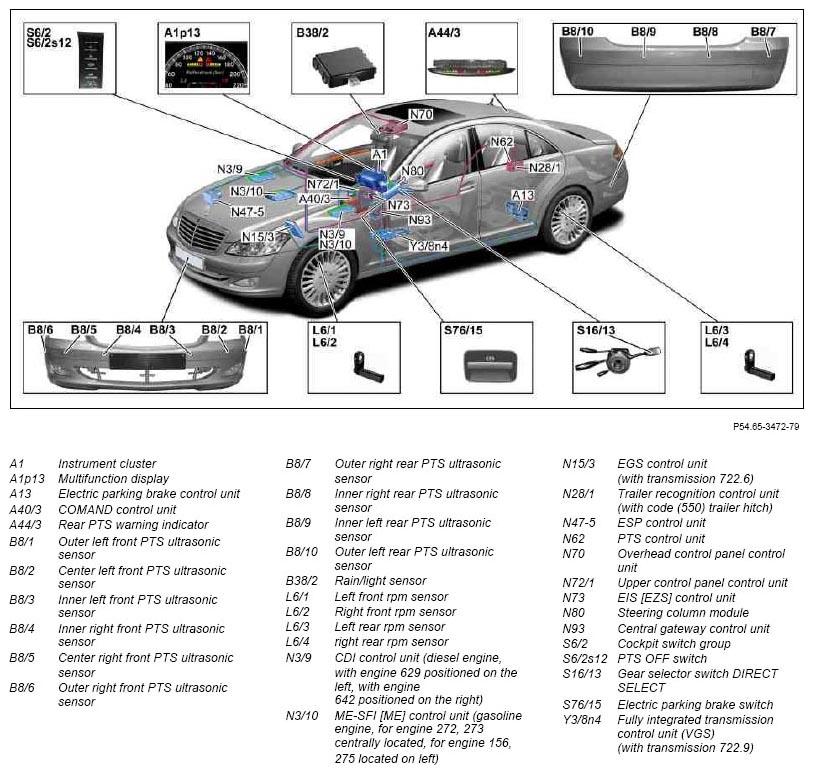

Fig 1: Locating Parktronic Components

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221.0
