Active Lane Keeping Assist, block diagram - GF54.71-P-0004-02LE

MODEL 216.3 with CODE (238) Active Lane Keeping Assist as of Model Year 2011 /AEJ 10 MOPF

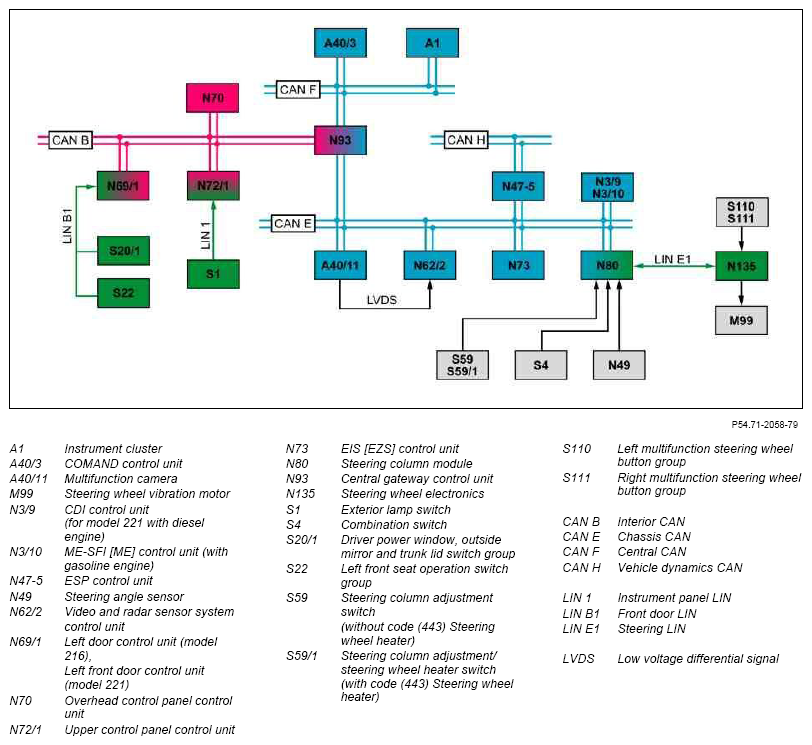

Fig 1: Active Lane Keeping Assist Block Diagram
