Test & Adjustment Values
>>
Speed Limit Assist, Location of Components - GF54.30-P-0012-01LE
Speed Limit Assist, Location of Components - GF54.30-P-0012-01LE
Shown on model 221

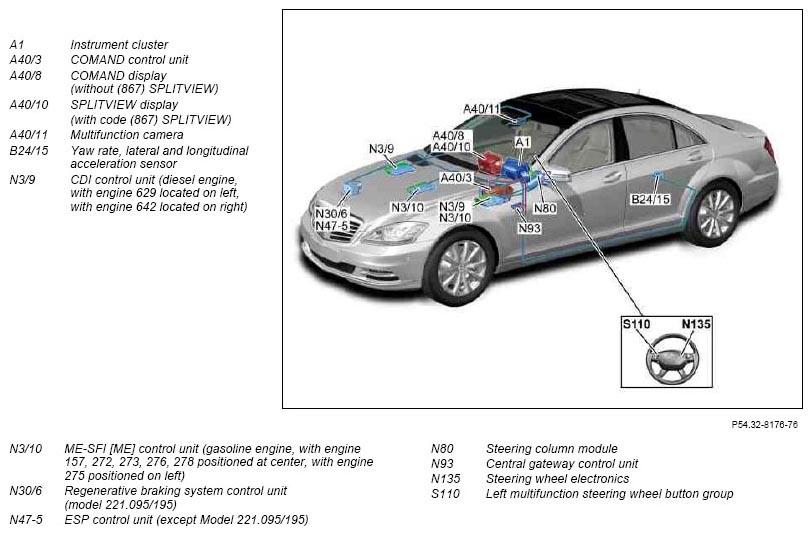

Fig 1: Locating Speed Limit Assist Components
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
