Night vision assist, networking of components - GF54.30-P-0005-02SX

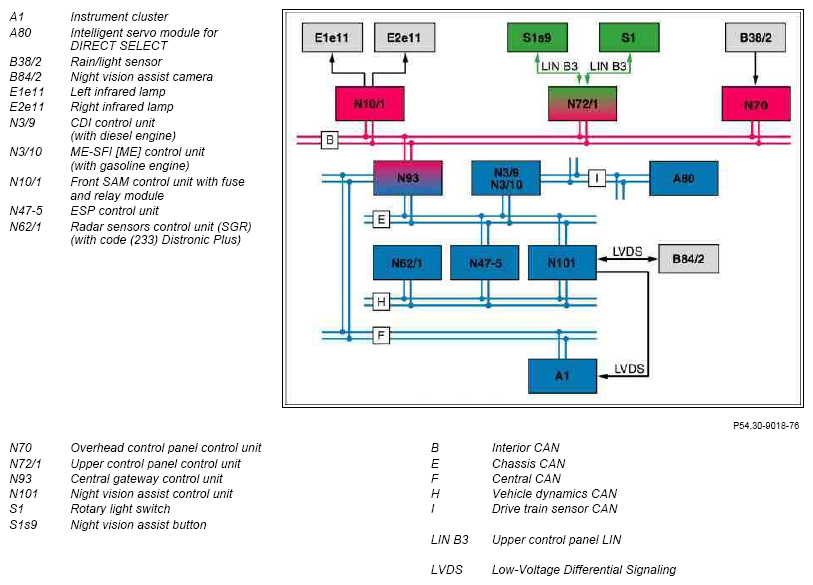

Fig 1: Networking Of Night Vision Assist Components

G07301081

Courtesy of MERCEDES-BENZ USA
