Cockpit central display, location of components - GF54.30-P-0004-01SXC

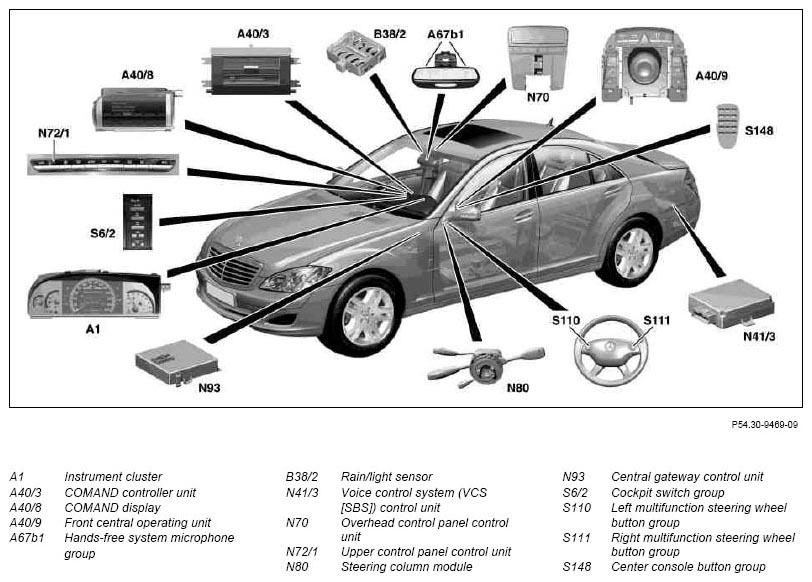

Fig 1: Locating Cockpit Central Display Components

G07301064

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221
