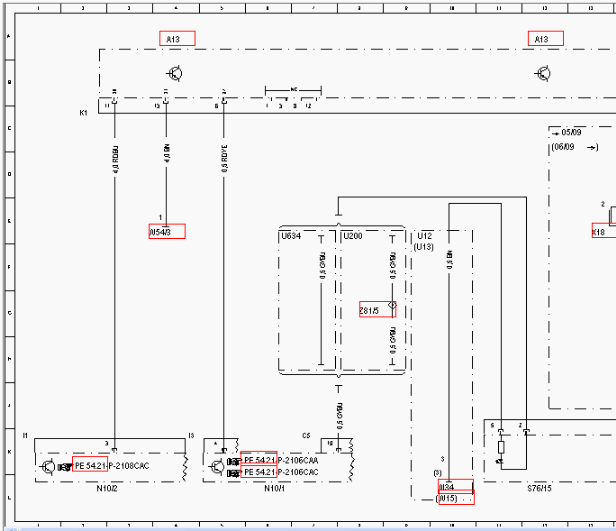

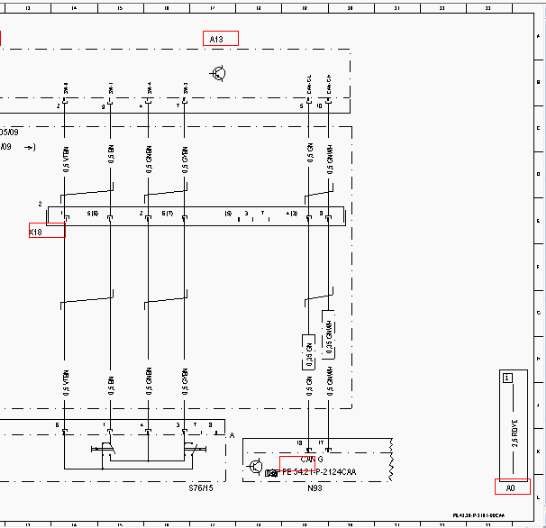

Wiring diagram for electric parking brake - PE42.20-P-2101-99CAA
MODEL 216.3 Control unit A13
| Code | Designation | Location |
|---|---|---|
| A0 | Explanation of color codes | 23L |
| A13 | Electric parking brake control unit | 4A |
| A13 | Electric parking brake control unit | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 6L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N93 | Central gateway control unit | 19L |
| S76/15 | Electric parking brake switch | 12L |
| U12 | Valid for left-hand steering | 9E |
| U13 | Valid for right-hand steering | 9F |
| U200 | Valid for TELE AID | 8E |
| U634 | Not valid for TELE AID | 6E |
| W15 | Ground (electronics power ground) | 10L |
| W34 | Ground (left footwell) | 10L |
| W54/3 | Ground (left rear wheelhouse) | 4E |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 13E |
| Z81/5 | Circuit 58d COC connector sleeve | 8G |
