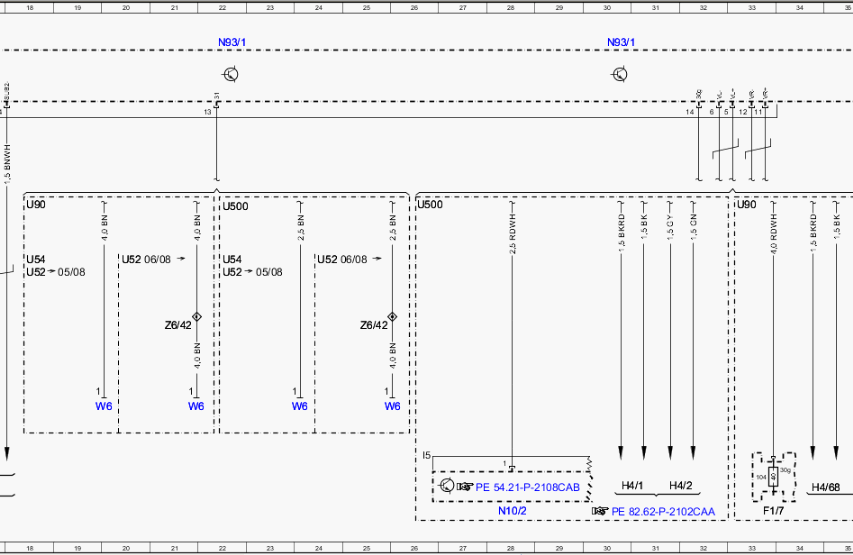

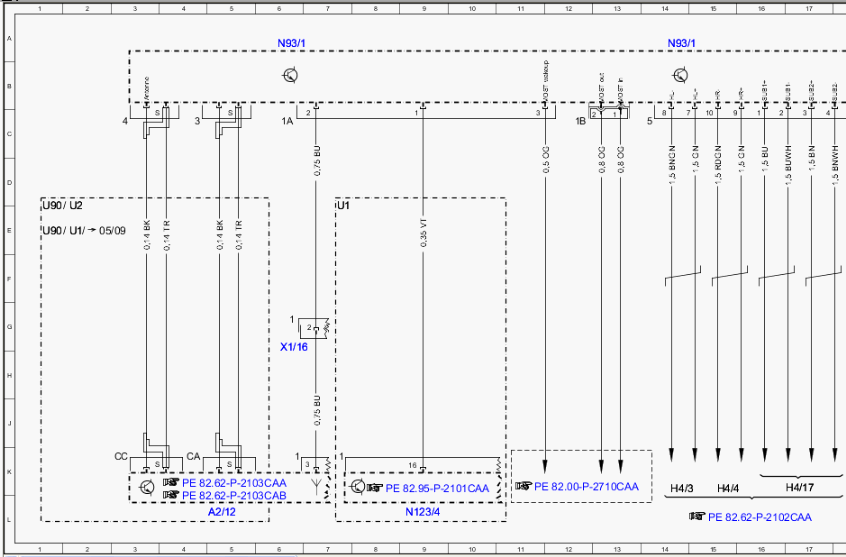

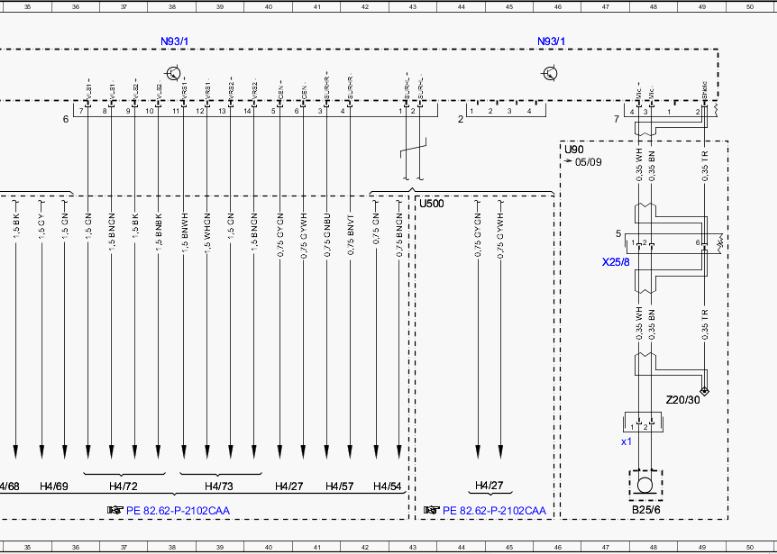

Wiring diagram for radio (RD) control unit - PE82.60-P-2101-97CAA
MODEL 216.3 Control unit N93/1
| Code | Designation | Location |
|---|---|---|

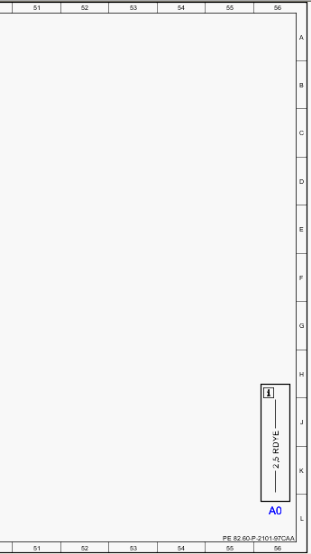

| A0 | Color code key | 56L |
| A2/12 | Rear window antenna amplifier module | 5L |
| B25/6 | Sound amplifier microphone | 48L |
| B25/6x1 | Sound amplifier microphone connector | 47J |
| F1/7 | Left instrument panel fuse box | 33L |
| F1/7f104 | Fuse 104 | 33K |
| H4/1 | Left door speaker group | 30K |
| H4/17 | Bass module speaker | 17K |
| H4/2 | Right door speaker group | 31K |
| H4/27 | Center cockpit speaker (centerfill) | 40K |
| H4/27 | Center cockpit speaker (centerfill) | 44K |
| H4/3 | Left door rear speaker | 14K |
| H4/4 | Right door rear speaker | 15K |
| H4/54 | Left rear surround speaker | 42K |
| H4/57 | Right rear surround speaker | 41K |
| H4/68 | Left door Sound tweeter | 34K |
| H4/69 | Right door Sound tweeter | 35K |
| H4/72 | Left door Sound woofer and midrange speaker group | 37K |
| H4/73 | Right door Sound woofer and midrange speaker group | 39K |
| N10/2 | Rear SAM control unit with fuse and relay module | 28L |
| N123/4 | Emergency call system control unit | 9L |
| N93/1 | Audio tuner control unit | 6A |
| N93/1 | Audio tuner control unit | 14A |
| N93/1 | Audio tuner control unit | 30A |
| N93/1 | Audio tuner control unit | 38A |
| N93/1 | Audio tuner control unit | 46A |
| N93/1 | Audio tuner control unit | 22A |
| U1 | Valid for {{USA}} | 7D |
| U1 | Valid for {{USA}} | 2E |
| U2 | Valid for all except {{USA}} | 2D |
| U500 | Not valid for Sound System | 26D |
| U500 | Not valid for Sound System | 43D |
| U500 | Not valid for Sound System | 22D |
| U52 | Valid for {{Japan}} | 18F |
| U52 | Valid for {{Japan}} | 20F |
| U52 | Valid for {{Japan}} | 22F |
| U52 | Valid for {{Japan}} | 24F |
| U54 | Valid for all except {{Japan}} | 18F |
| U54 | Valid for all except {{Japan}} | 22F |
| U90 | Valid for Sound System | 33D |
| U90 | Valid for Sound System | 46C |
| U90 | Valid for Sound System | 18D |
| U90 | Valid for Sound System | 1D |
| U90 | Valid for Sound System | 1E |
| W6 | Ground (left wheelhousing in trunk) | 19J |
| W6 | Ground (left wheelhousing in trunk) | 25J |
| W6 | Ground (left wheelhousing in trunk) | 21J |
| W6 | Ground (left wheelhousing in trunk) | 23J |
| X1/16 | Roof antenna connector | 6G |
| X25/8 | Overhead control panel and FFS [RBA] connector | 47F |
| Z20/30 | Tracer wire connector sleeve | 49J |
| Z6/42 | Ground W6 connector sleeve | 21G |
| Z6/42 | Ground W6 connector sleeve | 25G |
