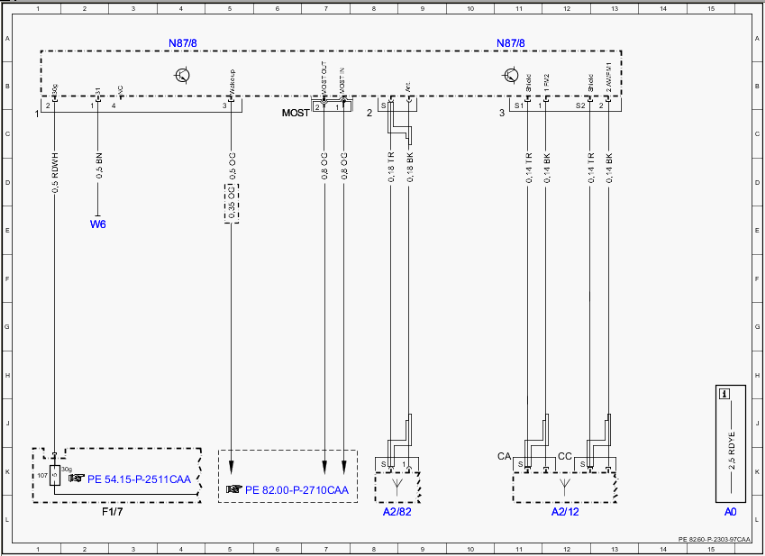

Wiring diagram for high definition tuner control unit - PE82.60-P-2303-97CAA
MODEL 216.3 with CODE (494) USA version with CODE (517) HD radio as of model year 2010 /YoM 09, control unit N87/8
| Code | Designation | Location |
|---|---|---|
| A0 | Color code key | 15L |
| A2/12 | Rear window antenna amplifier module | 12L |
| A2/82 | SDAR antenna | 8L |
| F1/7 | Left instrument panel fuse box | 2L |
| F1/7f107 | Fuse 107 | 1K |
| MOST | Media Oriented System Transport | 6B |
| N87/8 | High-definition tuner control unit | 4A |
| N87/8 | High-definition tuner control unit | 11A |
| W6 | Ground (left wheelhouse in luggage compartment) | 2E |
