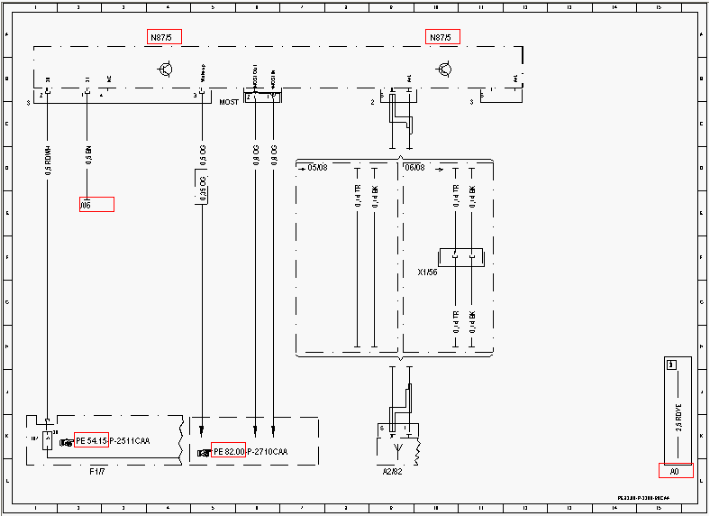

Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-P-2300-99CAA
MODEL 216.3 with CODE (536) SIRIUS satellite radio up to model year 2010 /YoM 09 control unit N87/5
| Code | Designation | Location |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A2/82 | SDAR antenna | 8L |
| F1/7 | Left instrument panel fuse box | 2L |
| F1/7f107 | Fuse 107 | 1K |
| N87/5 | SDAR control unit | 4A |
| N87/5 | SDAR control unit | 10A |
| W6 | Ground (left wheelhousing in trunk) | 2E |
