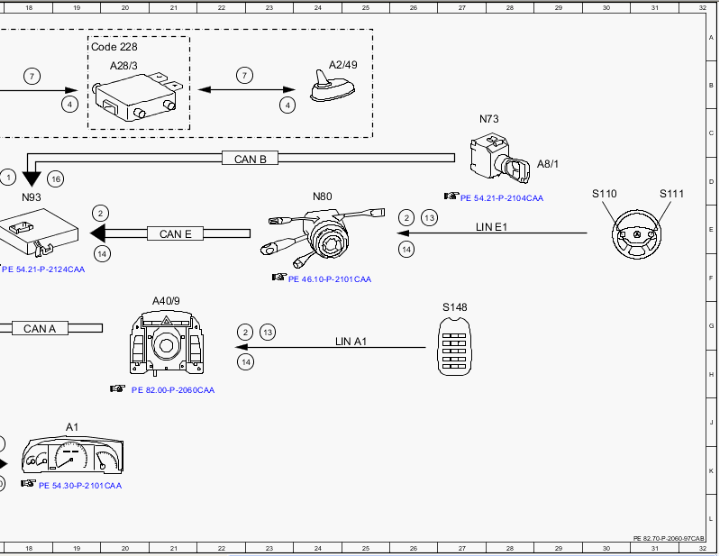

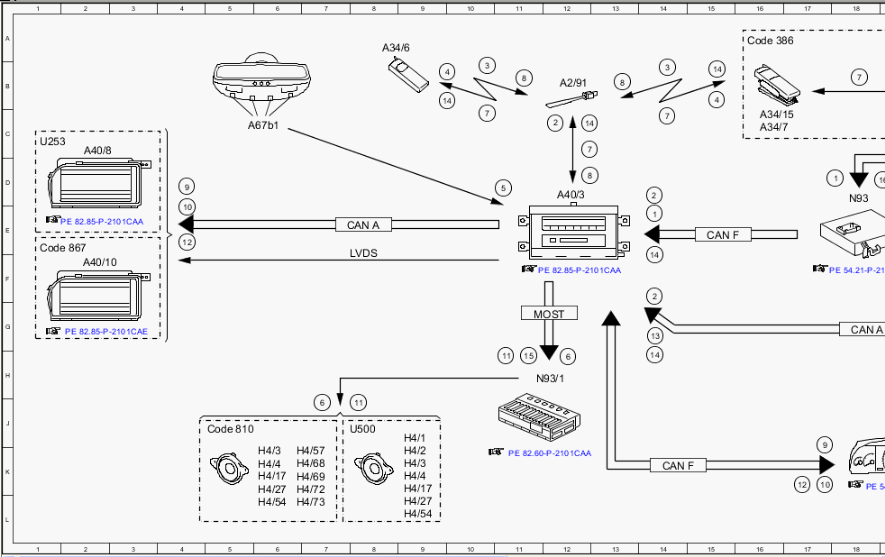

Electrical function diagram for mobile phone setting up call and ending call - PE82.70-P-2060-97CAB
MODEL 216 except CODE (498) Japan version as of model year 2010 /YoM 09 model refinement package
| Code | Designation | Location |
|---|---|---|
| 1 | Circuit 15, status | 14E |
| 1 | Circuit 15, status | 18D |
| 10 | Incoming call display, actuation | 17K |
| 10 | Incoming call display, actuation | 4D |
| 11 | Ring tone output, signal | 11H |
| 11 | Ring tone output, signal | 8J |
| 12 | Display of caller information, actuation | 17K |
| 12 | Display of caller information, actuation | 4E |
| 13 | Telephone/address book data display, request | 23G |
| 13 | Telephone/address book data display, request | 14G |
| 13 | Telephone/address book data display, request | 26E |
| 14 | Accept phone call, request | 9B |
| 14 | Accept phone call, request | 12C |
| 14 | Accept phone call, request | 14F |
| 14 | Accept phone call, request | 15B |
| 14 | Accept phone call, request | 26E |
| 14 | Accept phone call, request | 22H |
| 14 | Accept phone call, request | 20E |
| 14 | Accept phone call, request | 14H |
| 15 | Mute, signal | 11H |
| 16 | Circuit 30, status | 19D |
| 2 | Establish connection for phone call, request | 14D |
| 2 | Establish connection for phone call, request | 22G |
| 2 | Establish connection for phone call, request | 14F |
| 2 | Establish connection for phone call, request | 19E |
| 2 | Establish connection for phone call, request | 26E |
| 2 | Establish connection for phone call, request | 12C |
| 3 | Connection via Bluetooth, communication | 10B |
| 3 | Connection via Bluetooth, communication | 14B |
| 4 | Establish connection in mobile telephone network, request | 9B |
| 4 | Establish connection in mobile telephone network, request | 19B |
| 4 | Establish connection in mobile telephone network, request | 23B |
| 4 | Establish connection in mobile telephone network, request | 15B |
| 5 | Voice input, signal | 11D |
| 6 | Voice output, signal | 12H |
| 6 | Voice output, signal | 7J |
| 7 | Phone call data, communication | 10C |
| 7 | Phone call data, communication | 12C |
| 7 | Phone call data, communication | 14C |
| 7 | Phone call data, communication | 18B |
| 7 | Phone call data, communication | 22B |
| 8 | Download of telephone/address book data, communication | 12D |
| 8 | Download of telephone/address book data, communication | 13B |
| 8 | Download of telephone/address book data, communication | 11B |
| 9 | Telephone/address book data display, actuation | 17J |
| 9 | Telephone/address book data display, actuation | 4D |
| A1 | Instrument cluster | 19J |
| A2/49 | Telephone and GPS antenna | 24B |
| A2/91 | Bluetooth antenna | 12B |
| A28/3 | E-net compensator | 20B |
| A34/15 | UHI portable CTEL holder (Universal Handy Interface) | 16C |
| A34/6 | Mobile phone | 8A |
| A34/7 | Bluetooth module | 16C |
| A40/10 | SPLITVIEW display | 2F |
| A40/3 | COMAND control unit | 12D |
| A40/8 | COMAND display | 2C |
| A40/9 | Front central operating unit | 21F |
| A67b1 | Hands-free system microphone group | 5C |
| A8/1 | Transmitter ley | 29D |
| CAN A | Telematics CAN | 8E |
| CAN A | Telematics CAN | 18G |
| CAN B | Interior CAN | 22C |
| CAN E | Chassis CAN | 21E |
| CAN F | Central CAN | 15F |
| CAN F | Central CAN | 14K |
| Code 228 | Stationary heater | 19A |
| Code 386 | Mobile phone preinstallation with universal interface | 16A |
| Code 810 | Sound system | 5J |
| Code 867 | SPLITVIEW | 1E |
| H4/1 | Left door speaker group | 9J |
| H4/17 | Bass module speaker | 6K |
| H4/17 | Bass module speaker | 9K |
| H4/2 | Right door speaker group | 9K |
| H4/27 | Center cockpit speaker (centerfill) | 6K |
| H4/27 | Center cockpit speaker (centerfill) | 9L |
| H4/3 | Left door rear speaker | 6K |
| H4/3 | Left door rear speaker | 9K |
| H4/4 | Right door rear speaker | 6K |
| H4/4 | Right door rear speaker | 9K |
| H4/54 | Left rear surround speaker | 6L |
| H4/54 | Left rear surround speaker | 9L |
| H4/57 | Right rear surround speaker | 7K |
| H4/68 | Left door Sound tweeter | 7K |
| H4/69 | Right door Sound tweeter | 7K |
| H4/72 | Left door Sound woofer and midrange speaker group | 7K |
| H4/73 | Right door Sound woofer and midrange speaker group | 7L |
| LIN A1 | COU [ZBE] LIN | 25G |
| LIN E1 | Steering LIN | 27E |
| LVDS | Low voltage differential signal | 8E |
| MOST | Media Oriented System Transport | 12G |
| N73 | EIS [EZS] control unit | 27G |
| N80 | Steering column module | 24D |
| N93 | Central gateway control unit | 18D |
| N93/1 | Audio tuner control unit | 12H |
| S110 | Left multifunction steering wheel button group | 30D |
| S111 | Right multifunction steering wheel button group | 31D |
| S148 | Center console button group | 27G |
| U253 | Not valid for SPLITVIEW display | 1C |
| U500 | Not valid for Sound System | 8J |
