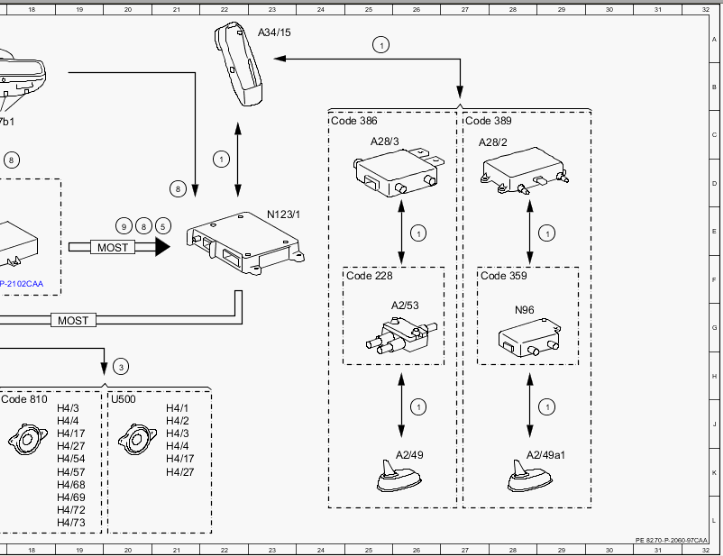

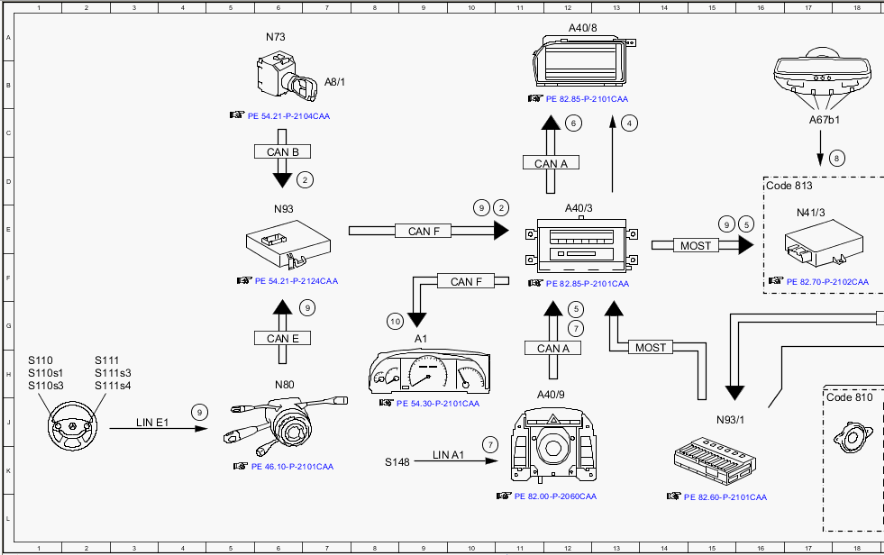

Electrical function diagram for mobile phone setting up call and ending call - PE82.70-P-2060-97CAA
MODEL 216 up to 31.5.09 with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada as of model year 2009 /YoM 08
| Code | Designation | Location |
|---|---|---|
| 1 | Telephone, signal | 29J |
| 1 | Telephone, signal | 22D |
| 1 | Telephone, signal | 26J |
| 1 | Telephone, signal | 26E |
| 1 | Telephone, signal | 29E |
| 1 | Telephone, signal | 25A |
| 2 | Circuit 15R/circuit 15, status ON | 7D |
| 2 | Circuit 15R/circuit 15, status ON | 11E |
| 3 | Speaker, actuation | 20H |
| 4 | Audio/COMAND display, signal | 13C |
| 6 | Switch-on request, signal | 12C |
| 8 | VCS microphone, signal | 18C |
| 8 | VCS microphone, signal | 20E |
| 8 | VCS microphone, signal | 21D |
| 9 | Multifunction steering wheel button group, signal | 10E |
| 9 | Multifunction steering wheel button group, signal | 4J |
| 9 | Multifunction steering wheel button group, signal | 6G |
| 9 | Multifunction steering wheel button group, signal | 15E |
| 9 | Multifunction steering wheel button group, signal | 20E |
| A1 | Instrument cluster | 9G |
| A2/49 | Telephone and GPS antenna | 26K |
| A2/49a1 | Telephone antenna | 28K |
| A2/53 | Telephone/portable CTEL/STH radio control antenna splitter | 26G |
| A28/2 | Portable CTEL antenna splitter | 27C |
| A28/3 | E-net compensator | 25C |
| A34/15 | UHI portable CTEL holder (Universal Handy Interface) | 23A |
| A40/3 | COMAND control unit | 12E |
| A40/8 | COMAND display | 12A |
| A40/9 | Front central operating unit | 12J |
| A67b1 | Hands-free system microphone group | 17C |
| A8/1 | Transmitter ley | 7B |
| CAN A | Telematics CAN | 11D |
| CAN A | Telematics CAN | 12G |
| CAN B | Interior CAN | 6C |
| CAN E | Chassis CAN | 6G |
| CAN F | Central CAN | 9E |
| CAN F | Central CAN | 9F |
| Code 228 | Stationary heater | 25F |
| Code 359 | TELEAID emergency call system | 28F |
| Code 386 | Mobile phone preinstallation with universal interface | 24C |
| Code 389 | Mobile phone preinstallation with universal interface, USA/Canada | 27C |
| Code 810 | Sound system | 18H |
| Code 813 | Voice control system (VCS [SBS]) | 16D |
| H4/1 | Left door speaker group | 21J |
| H4/2 | Right door speaker group | 21J |
| H4/17 | Bass module speaker | 19J |
| H4/17 | Bass module speaker | 21K |
| H4/27 | Center cockpit speaker (centerfill) | 19J |
| H4/27 | Center cockpit speaker (centerfill) | 21K |
| H4/3 | Left door rear speaker | 19J |
| H4/3 | Left door rear speaker | 21J |
| H4/4 | Right door rear speaker | 19J |
| H4/4 | Right door rear speaker | 21J |
| H4/54 | Left rear surround speaker | 19K |
| H4/57 | Right rear surround speaker | 19K |
| H4/68 | Left door Sound tweeter | 19K |
| H4/69 | Right door Sound tweeter | 19K |
| H4/72 | Left door Sound woofer and midrange speaker group | 19L |
| H4/73 | Right door Sound woofer and midrange speaker group | 19L |
| LIN A1 | COU [ZBE] LIN | 9K |
| LIN E1 | Steering LIN | 3J |
| LVDS | Low voltage differential signal | 14D |
| MOST | Media Oriented System Transport | 14E |
| MOST | Media Oriented System Transport | 20E |
| MOST | Media Oriented System Transport | 19G |
| MOST | Media Oriented System Transport | 14G |
| N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 23E |
| N41/3 | Voice control system (VCS [SBS] control unit | 17E |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 6H |
| N93 | Central gateway control unit | 6E |
| N93/1 | Audio tuner control unit | 15J |
| N96 | Frequency switchover control unit | 28G |
| S110 | Left multifunction steering wheel button group | 1H |
| S110s1 | Scroll forward/back button | 1H |
| S110s3 | System selection button | 1H |
| S111 | Right multifunction steering wheel button group | 2H |
| S111s3 | Accept/terminate phone call button | 2H |
| S111s4 | VCS [SBS] on button | 2H |
| S148 | Center console button group | 8K |
| U500 | Not valid for Sound System | 20H |
