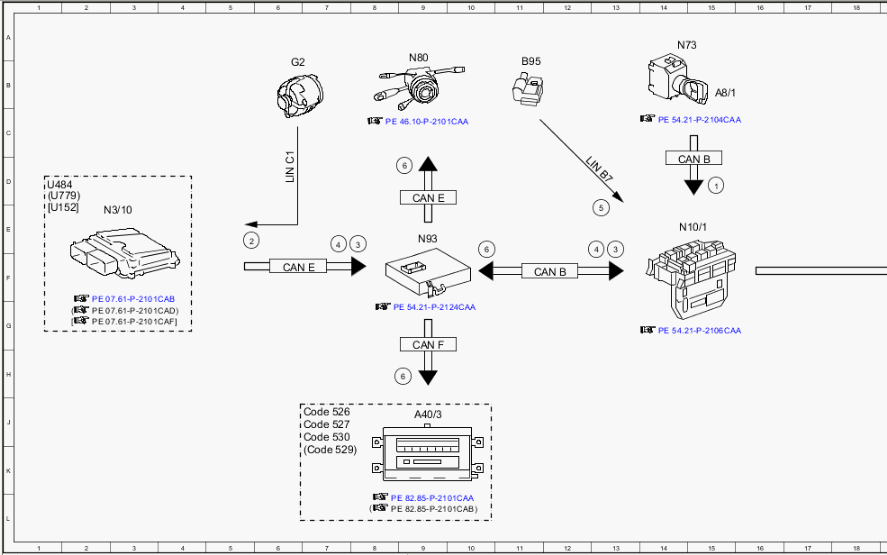

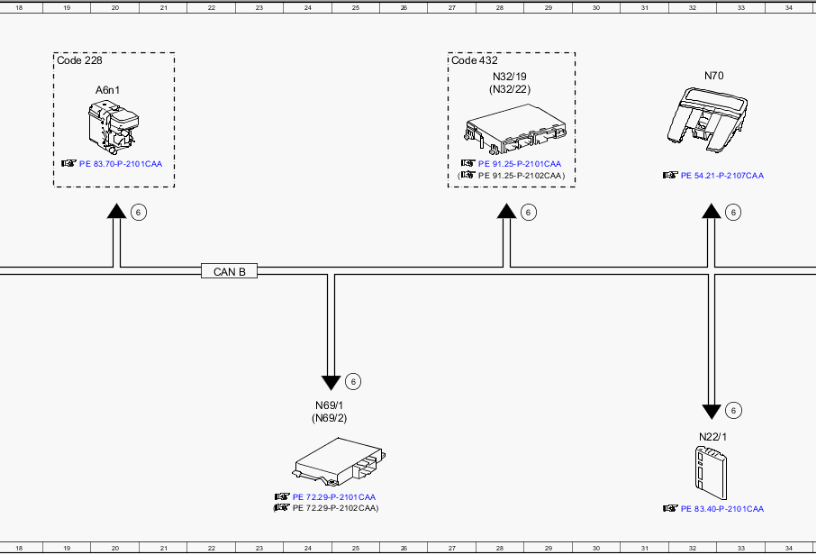

Electrical function schematic for consumer shutoff - PE54.10-P-2066-97CAA
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15D |
| 2 | Alternator, status | 5E |
| 3 | Circuit 61, status | 8E |
| 3 | Circuit 61, status | 13E |
| 4 | Alternator operating rate, signal | 7E |
| 4 | Alternator operating rate, signal | 13E |
| 5 | Battery sensor, signal | 13D |
| 6 | Consumer shutoff, request | 10E |
| 6 | Consumer shutoff, request | 25H |
| 6 | Consumer shutoff, request | 33J |
| 6 | Consumer shutoff, request | 21E |
| 6 | Consumer shutoff, request | 29E |
| 6 | Consumer shutoff, request | 37E |
| 6 | Consumer shutoff, request | 33E |
| 6 | Consumer shutoff, request | 9H |
| 6 | Consumer shutoff, request | 9D |
| A40/3 | COMAND control unit | 9J |
| A6n1 | STH control unit | 20B |
| A8/1 | Transmitter key | 15B |
| B95 | Battery sensor | 11B |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 14C |
| CAN B | Interior CAN | 22F |
| CAN E | Chassis CAN | 6F |
| CAN E | Central CAN | 9D |
| CAN F | Chassis CAN | 9G |
| Code 228 | Stationary heater | 19B |
| Code 401 | Front comfort seats, incl. seat heating and seat ventilation | 35B |
| Code 432 | Left and right front dynamic multicontour seats | 27B |
| Code 526 | COMAND with single DVD drive (without navigation) | 7J |
| Code 527 | COMAND APS (with navigation) | 7J |
| Code 529 | HIGH Class Japan | 7K |
| Code 530 | COMAND APS USA (with navigation) | 7J |
| G2 | Alternator | 6A |
| LIN B7 | On-board electrical system LIN | 13D |
| LIN C1 | Drive train LIN | 6D |
| N10/1 | Front SAM control module with fuse and relay module | 15E |
| N22/1 | AAC [KLA] control unit | 32J |
| N3/10 | ME-SFI [ME] control unit | 3E |
| N32/1 | Left front seat control unit | 36B |
| N32/19 | Left front dynamic seat control unit | 28B |
| N32/2 | Right front seat control unit | 36B |
| N32/22 | Right front dynamic seat control unit | 28B |
| N69/1 | Left door control unit | 24H |
| N69/2 | Right door control unit | 24J |
| N70 | Overhead control panel control unit | 32B |
| N73 | EIS [EZS] control unit | 14A |
| N80 | Steering column module | 9A |
| N93 | Central gateway control unit | 9E |
| U152 | Valid for engine 156 | 5 J |
| U152 | Valid for engine 156 | 1E |
| U484 | Valid for M273 ME | 1D |
| U779 | Valid for engine 275 | 1D |
