Retrofit iPod interface wiring harness - AZ82.60-P-0001-01SC

MODEL 216.3## 1# except CODE (498) Japan version with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system with CODE (389) Mobile phone preinstallation with universal interface, USA/C

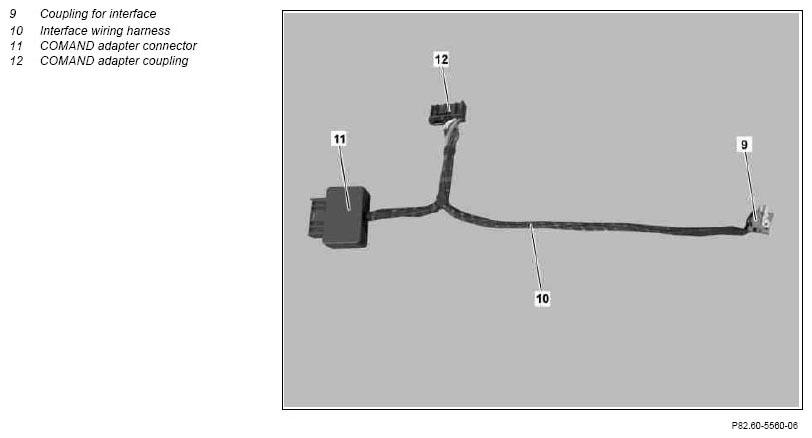

Fig 1: Identifying Ipod Interface Wiring Harness, Couplings And COMAND Adapter Connector

Courtesy of MERCEDES-BENZ USA

Risk of breakage!  Do not kink fiber optic cable, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optic cable and do not compress with clamps or cable ties.

1. If present, remove MOST coupling (13) from standard COMAND coupling (14).

   Shown on model 221

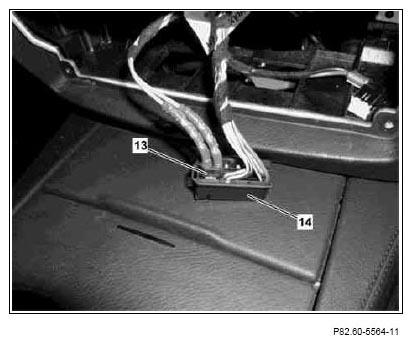

   Fig 2: Identifying Most And COMAND Coupling

   Courtesy of MERCEDES-BENZ USA
2. If present, install MOST coupling (13) in COMAND adapter coupling (12) of interface wiring harness (10).
3. Connect standard COMAND coupling (14) to COMAND adapter connector (11) of interface wiring harness (10).
4. Wrap COMAND adapter connector (11) in self-adhesive felt.

   The COMAND adapter coupling (12) of the interface wiring harness (10) is connected to the COMAND control unit later.

5. Route interface coupling (9) of interface wiring harness (10) from COMAND installation opening behind right side piece (19) of center console in vicinity of glove box as per picture (see enlarged detail).

   Interface coupling (9) of interface wiring harness (10) will be connected to iPod interface at a later point in time.

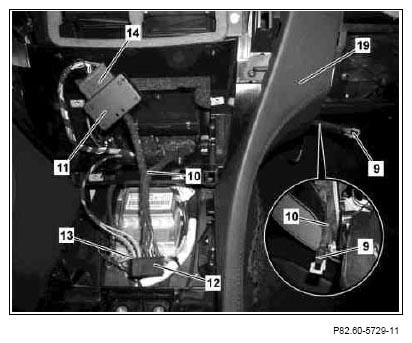

   Fig 3: Identifying Most Coupling, COMAND Adapter And Interface Coupling Of Interface Wiring Harness

   Courtesy of MERCEDES-BENZ USA
