Remove/install seat cushion - AR91.10-P-3310SC

MODEL 216.3

Shown on right front seat

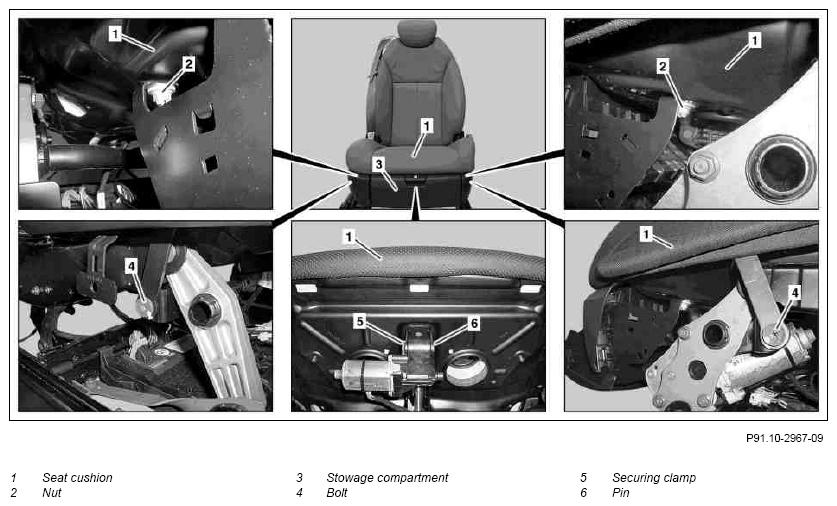

Fig 1: Identifying Seat Cushion Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove paneling on front seat frame of left or right front seat		AR91.10-P-1200SC
2	Remove left and right nut (2) and remove stowage compartment (3) at front seat
3	Remove pin (6)
4	Remove wiring harness from seat cushion (1)	Number of electrical connectors differs according to configuration. Installation:  Pay attention to routing and attachment of wiring harness.
5	Warm up left and right bolt (4) at seat cushion frame and remove	Installation: Install new bolts (4).	*BA91.10-P-1003-01O
			*WH58.30-Z-1004-20A
6	Remove seat cushion (1) forwards	Installation:  Ensure correct seating of seat cushion (1) in rear guides.
7	Install in the reverse order

FRONT SEATS

Number	Designation		Model 216
BA91.10-P-1003-01O	Bolt, cushion frame to seat frame	Nm	22

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1004-20A	Hot-air gun
