Install and weld in center roof paneling - AR65.10-P-1000-04SC

Install center roof paneling (1), fit using spacer blocks and fasten using clamping pliers.
When removing, observe specified dimensions and position of spacer blocks.
Center roof paneling (1) (areas A, B, C and D).
Position resistance spot welds at precise position of resistance spot welds made at factory to ensure minimum required strength for weld joints (areas B and D).

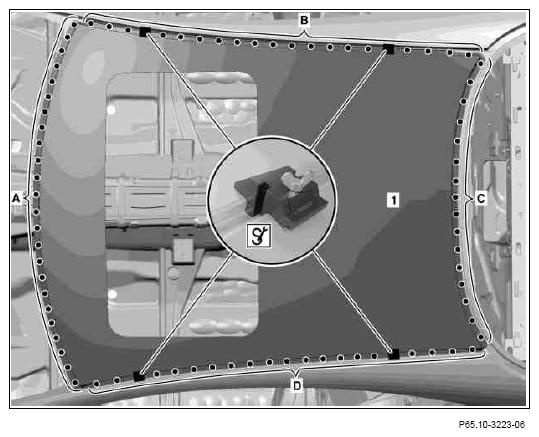

Fig 1: Identifying Center Roof Paneling Spacer Blocks
Courtesy of MERCEDES-BENZ USA

3 MIG braze center roof paneling (1) (areas E, F, G and H).

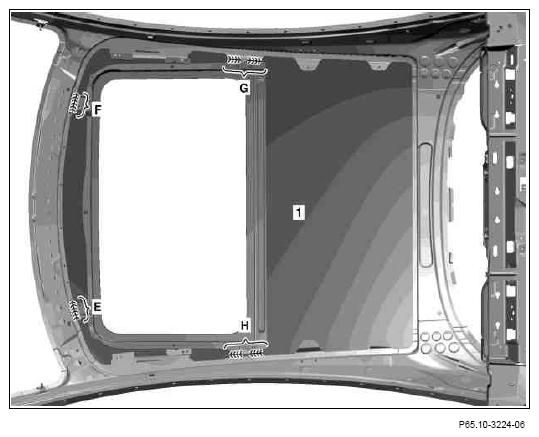

Fig 2: Identifying MIG Braze Center Roof Paneling Areas (E, F, G And H)
Courtesy of MERCEDES-BENZ USA
