Remove/install E-net compensator - AR82.70-P-0010SC
MODEL 216.3 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

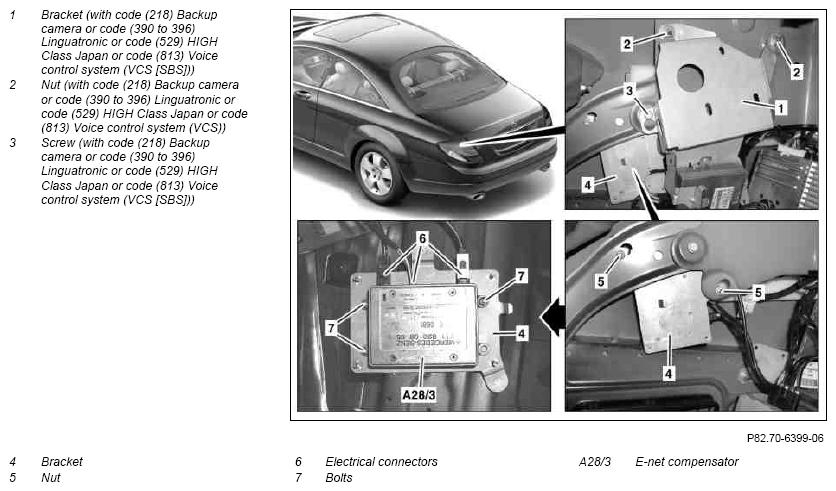

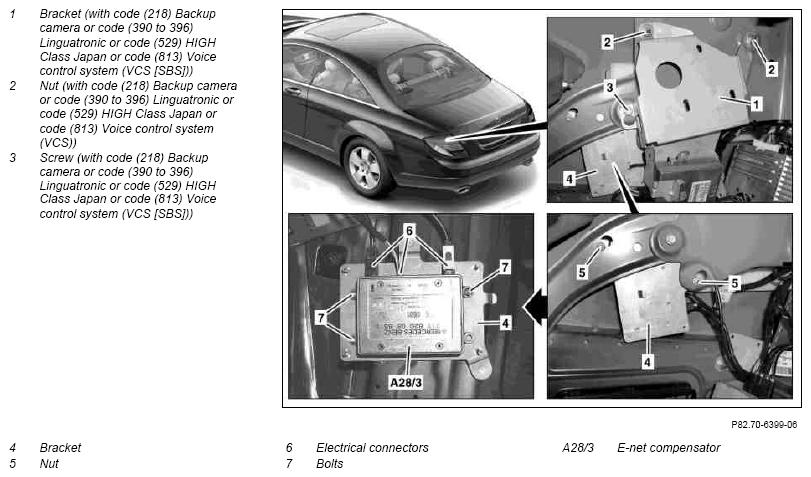

| 1 | Remove spare tire well paneling, loosen side paneling in trunk and pivot to side until E-net compensator (A28/3) is accessible. | AR68.30-P-4600SX | |
| 2.1 | Undo nuts (2) and screw (3) and remove bracket (1) | For vehicles with code (218) Backup camera or with code (390 up to 396) Linguatronic or with code (529) HIGH Class Japan or with code (813) Voice control system (VCS [SBS]) |
|
| 3 | Undo nuts (5) and remove bracket (4) with E-net compensator (A28/3) | ||
| 4 | Detach electrical connectors (6) and remove E-net compensator (A28/3) with bracket (4) | ||
| 5.1 | Unscrew bolts (7) and remove E-net compensator (A28/3) from mount (4). | When replacing E-net compensator (A28/3). | |
| 6 | Install in the reverse order |
