Remove/install 12 Volt socket - AR54.10-P-1000TX

MODEL 168, 169, 170, 171, 197, 203, 204, 208, 209, 210, 211, 216, 219, 221, 245

MODEL 230 except CODE (P99) Special model "AMG Black Series"

Illustrated on model 219

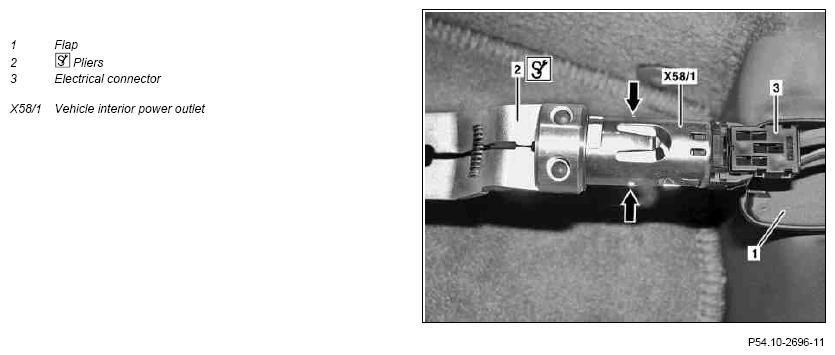

Fig 1: Identifying Removing/Installing 12 Volt Socket

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Open flap (1) of vehicle interior socket (X58/1)
3	Unlock vehicle interior socket (X58/1) using pliers (2) and pull out until the electrical connector (3) is accessible	The trunnion of the pliers (2) must engage in the cutouts of the housing of the vehicle interior socket (X58/1) (arrows).
3			Fig 2
4	Disconnect electrical connector (3) and remove vehicle interior socket (X58/1)	Installation: Pay attention to correct installation position of vehicle interior socket (X58/1).
5	Install in the reverse order

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
