Transmission oil temperature sensor component description - GF27.19-P-4017GZ
TRANSMISSION 722.9 in MODEL 164.1 /8, 216, 221, 251.0 /1 up to Model Year 8
Location

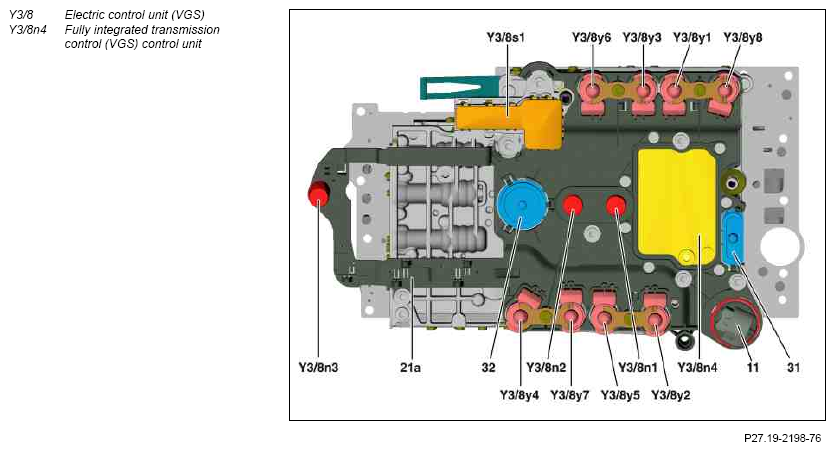

The transmission oil temperature sensor (VGS) (Y3/8s2) is integrated into the fully integrated transmission control (VGS) control unit
Task
The transmission oil temperature sensor (VGS) records the transmission oil temperature. This is processed as an input variable by the fully integrated transmission control (VGS) control unit.
Design
The transmission oil temperature sensor (VGS) has a measuring resistor with a negative temperature coefficient (NTC).
