Planetary gear set component description - GF27.50-P-2100GZ
TRANSMISSION 722.9 in MODEL 164.1 /8, 204.0, 216, 221, 251.0 /1 up to Model Year 08 /modification year 07 single planetary gear set
Location

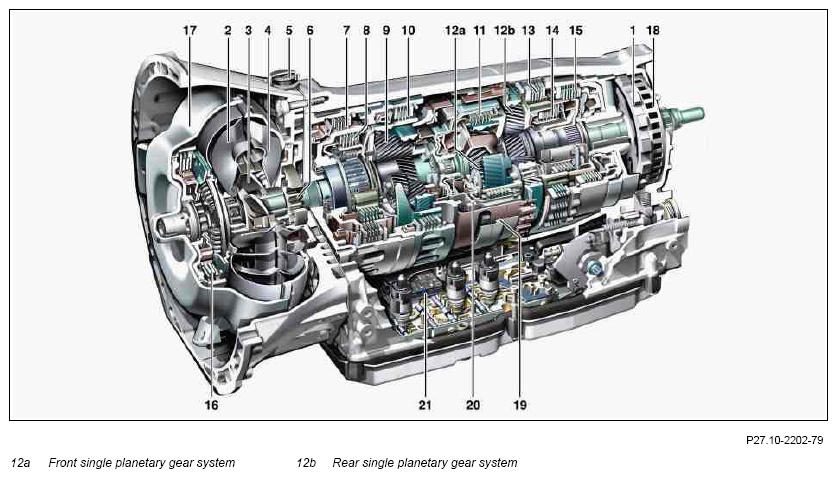

The front single planetary gear set and the rear single planetary gear set are located in the mechanical part of the transmission.
Task
The task consists of power transmission and the formation of different ratios.
Design

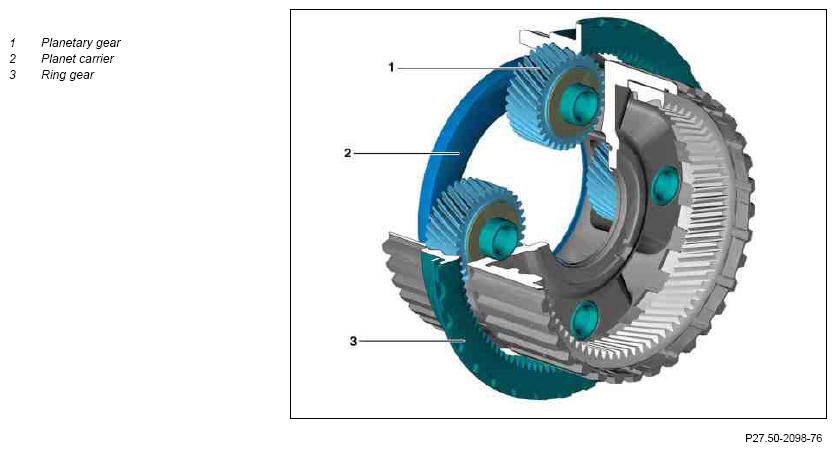

A single planetary gear system consists of a ring gear, the planetary gears mounted in the planet carrier and a sun gear.
Simple planetary gear system
Function
The elements ring gear, sun gear and planet carrier of a single planetary gear set are alternately driven and stalled via the shift elements of the multidisk clutch and multidisk brake. In the process the planetary gears can turn on the internal toothing of the ring gear and on the outer toothing of the sun gear. This allows for a variety of gear ratios and the reversal of the rotation direction without the need for moving gear wheels or shift collars.
The torque conversion and RPM conversion takes place corresponding to the lever ratios or the ratio of the number of teeth of the driven to the driving gear wheels and is designated as the gear ratio i. The overall ratio of a number of planetary gear sets connected in series is obtained by multiplying the partial ratios.
If 2 components of a single planetary gear system are rigidly connected to each other, then this is locked and rotates as a closed unit.
Advantages of a single planetary gear system
- Shifting ability under load
- Several ratios can be produced
- Constant meshing of the gears
- Simple direction reversal
- High efficiency
- Coaxial location of input and output
- Compact design
