Automatic transmission (AT), location of mechanical parts - GF27.10-P-0001-07AHS

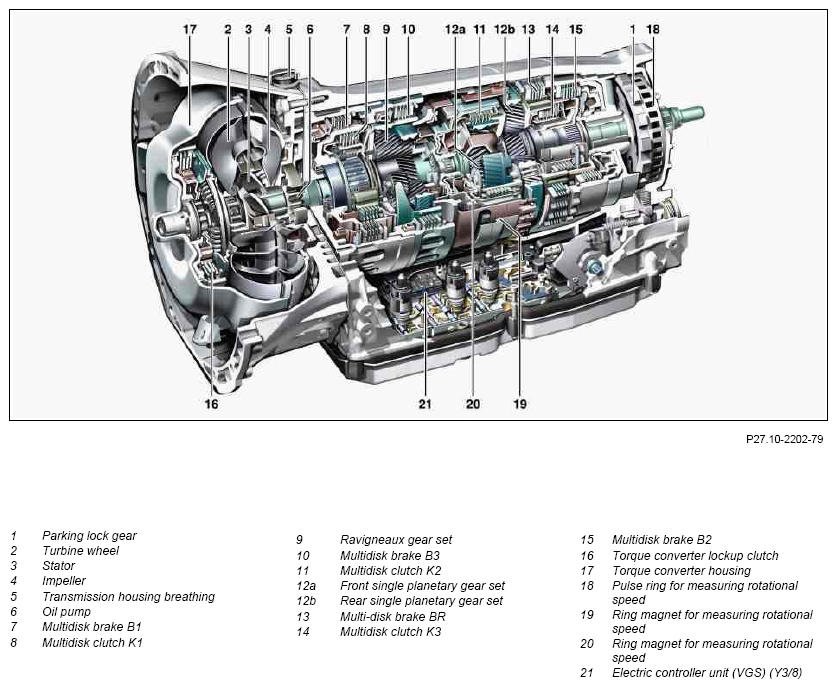

Sectional view of automatic transmission model 216 to model year 2011 /YoM 10 model refinement package or model 221 up to model year 2011 /YoM 10

Fig 1: Identifying Sectional View Of Automatic Transmission

Courtesy of MERCEDES-BENZ USA

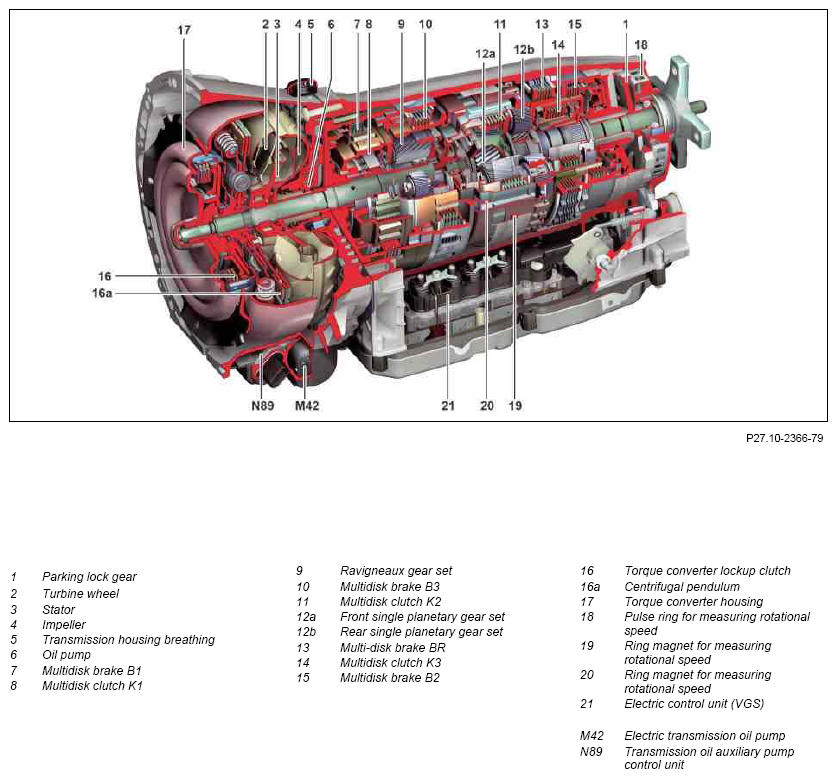

Sectional view of automatic transmission model 216 as of model year 2011 /YoM 10 model refinement package (with code (B03) ECO start/stop function) or Model 221 as of model year 2011 /YoM 10 with engine 278.9, 642.8, 651.9 (with code (B03) ECO start/stop function)

Fig 2: Identifying Sectional View Of Automatic Transmission (With Code (B03) Eco Start/Stop Function)

Courtesy of MERCEDES-BENZ USA

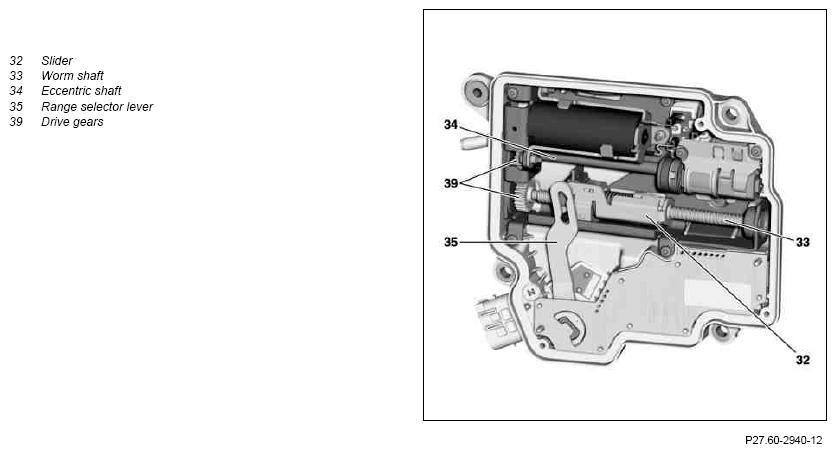

Rear view of intelligent servo module for DIRECT SELECT (A80), up to 31.8.08

Fig 3: Identifying Rear View Of Intelligent Servo Module For Direct Select

Courtesy of MERCEDES-BENZ USA

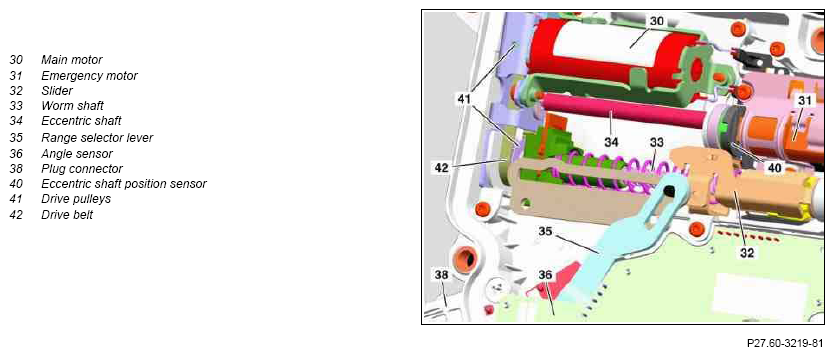

Rear view of intelligent servo module for DIRECT SELECT (A80), as of 1.9.08

Fig 4: Identifying Rear View Of Intelligent Servo Module For Direct Select

Courtesy of MERCEDES-BENZ USA
