Automatic transmission (AT), location of hydraulic components - GF27.10-P-0001-09AHS

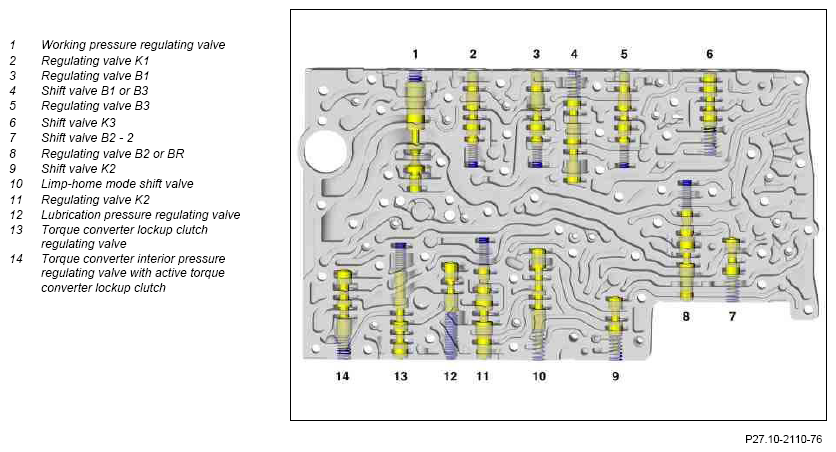

Top view of valve body

Fig 1: Identifying Top View Of Valve Body
G07637212Courtesy of MERCEDES-BENZ USA

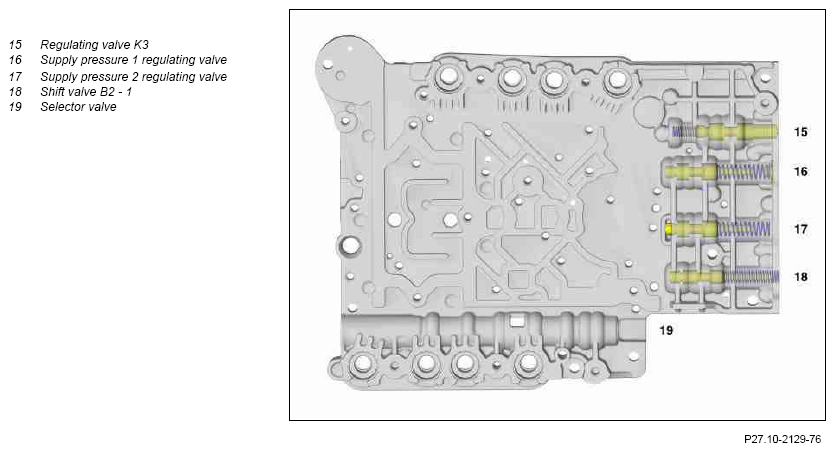

Top view of valve housing

Fig 2: Identifying Top View Of Valve Housing
G07637213Courtesy of MERCEDES-BENZ USA
