Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08GZ

Transmission 722.9 in model 164.1/8, 216, 221, 251.0/1

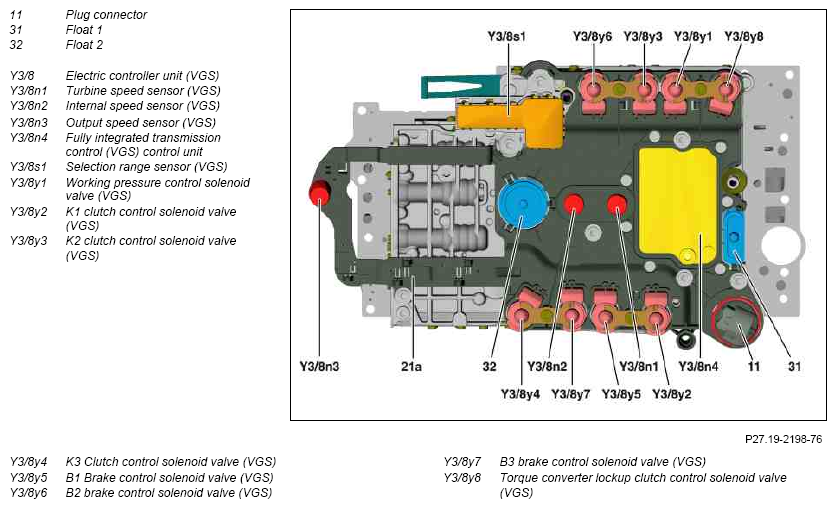

Fig 1: Identifying Automatic Transmission Electronic Components
G07637211Courtesy of MERCEDES-BENZ USA
