Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08AHS

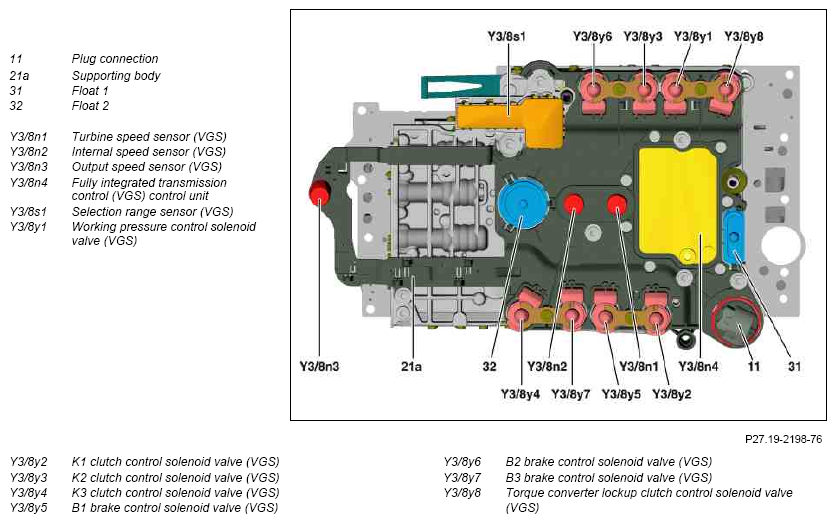

Top view of electric controller unit (VGS) (Y3/8)

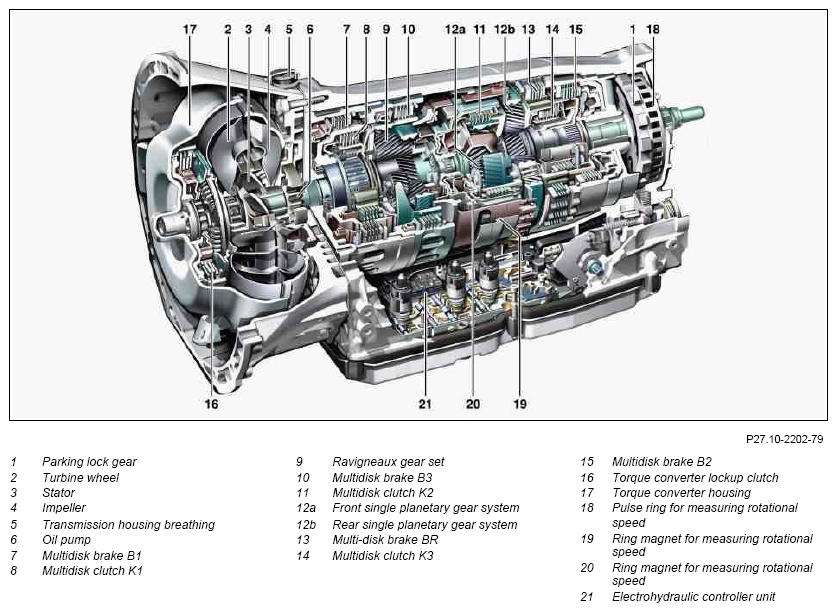

Fig 1: Identifying View Of Electric Controller Unit (VGS) (Y3/8)

Courtesy of MERCEDES-BENZ USA

Fig 2: Top View Of Electric Controller Unit (VGS)

Courtesy of MERCEDES-BENZ USA

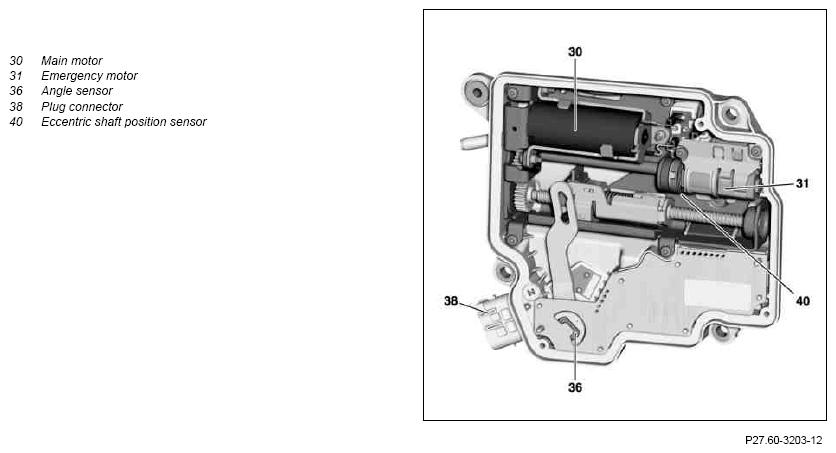

Rear view of intelligent servo module for DIRECT SELECT (A80), up to 31.8.08

Fig 3: Rear View Of Intelligent Servo Module For Direct Select

Courtesy of MERCEDES-BENZ USA

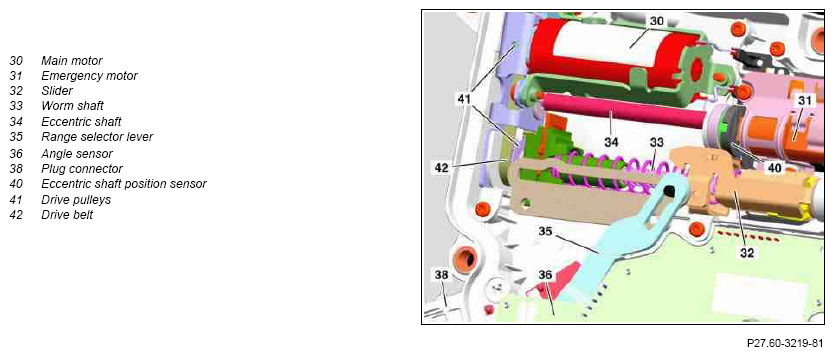

Rear view of intelligent servo module for DIRECT SELECT, as of 1.9.08

Fig 4: Rear View Of Intelligent Servo Module For Direct Select

Courtesy of MERCEDES-BENZ USA

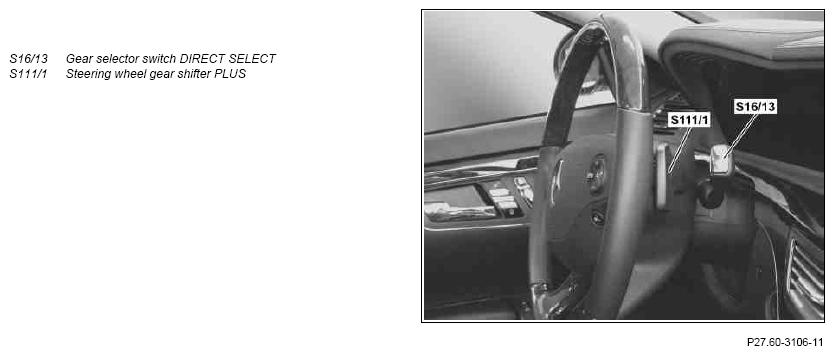

Right view of multifunction steering wheel (MFL), model 221 with code (428) Steering wheel shift paddles

Fig 5: Identifying Gear Selector Switch, And Steering Wheel Gear Shifter

Courtesy of MERCEDES-BENZ USA

On the back of the multifunction steering wheel on the right is located the steering wheel gear shifter PLUS, the gear selector switch DIRECT SELECT and on the left the steering wheel gear shifter MINUS (S110/1).

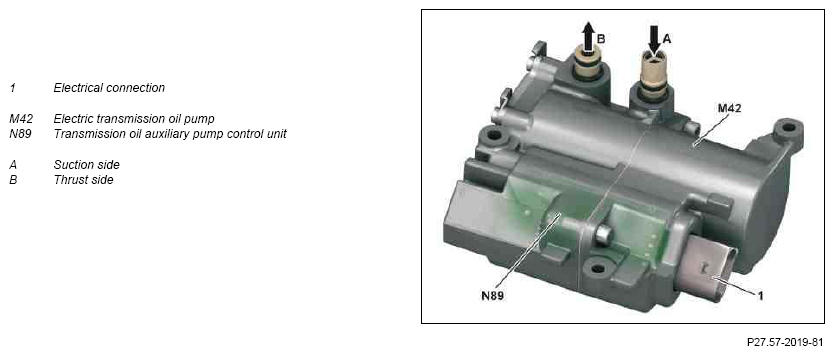

View of electric transmission oil pump (M42) from above (shown on model 216 as of model year 2011 /YoM 10 model refinement package or model 221 as from model year 2011 /YoM 10, with code (B03) ECO start/stop function)

Fig 6: Identifying Electric Transmission Oil Pump, And Transmission Oil Auxiliary Pump Control Unit

Courtesy of MERCEDES-BENZ USA
