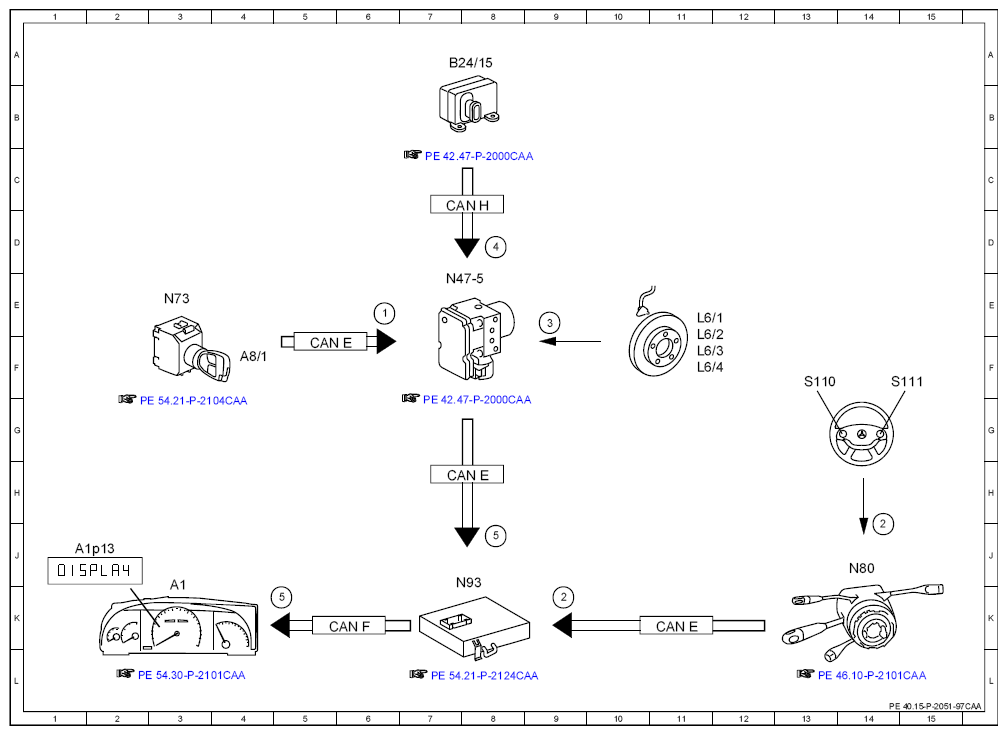

| 1 |
Circuit 15, status |
6E |
| 2 |
Multifunction steering wheel button group, signal |
9K |
| 2 |
Multifunction steering wheel button group, signal |
14J |
| 3 |
Wheel speed, signal |
9E |
| 4 |
Yaw rate and lateral acceleration sensor, signal |
8D |
| 5 |
Tire pressure loss warning message, request |
8J |
| 5 |
Tire pressure loss warning message, request |
5K |
| A1 |
Instrument cluster |
3K |
| A1p13 |
Multifunction display |
1J |
| A8/1 |
Transmitter key |
4F |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
8B |
| CAN |
E Chassis CAN |
11K |
| CAN |
E Chassis CAN |
7H |
| CAN |
E Chassis CAN |
5F |
| CAN |
F Central CAN |
6K |
| CAN |
H Vehicle dynamics CAN |
8D |
| L6/1 |
Left front RPM sensor |
11E |
| L6/2 |
Right front RPM sensor |
11E |
| L6/3 |
Left rear RPM sensor |
11F |
| L6/4 |
right rear RPM sensor |
11F |
| N47-5 |
ESP control unit |
8E |
| N73 |
EIS [EZS] control unit |
3F |
| N80 |
Steering column module |
14K |
| N93 |
Central gateway control unit |
8K |
| S110 |
Left multifunction steering wheel button group |
13F |
| S111 |
Right multifunction steering wheel button group |
14F |
