240 589 00 33 01 Sleeve - WS35.00-P-0204-01B

FG 35/Set B

MODEL 240

Use:

Sleeve including spindle from set W 240 589 00 33 00.

VEHICLE

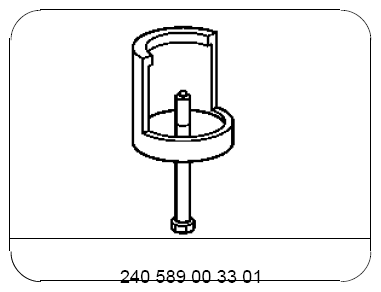

Fig 1: Identifying Sleeve (240 589 00 33 01)
G07643275Courtesy of MERCEDES-BENZ USA
