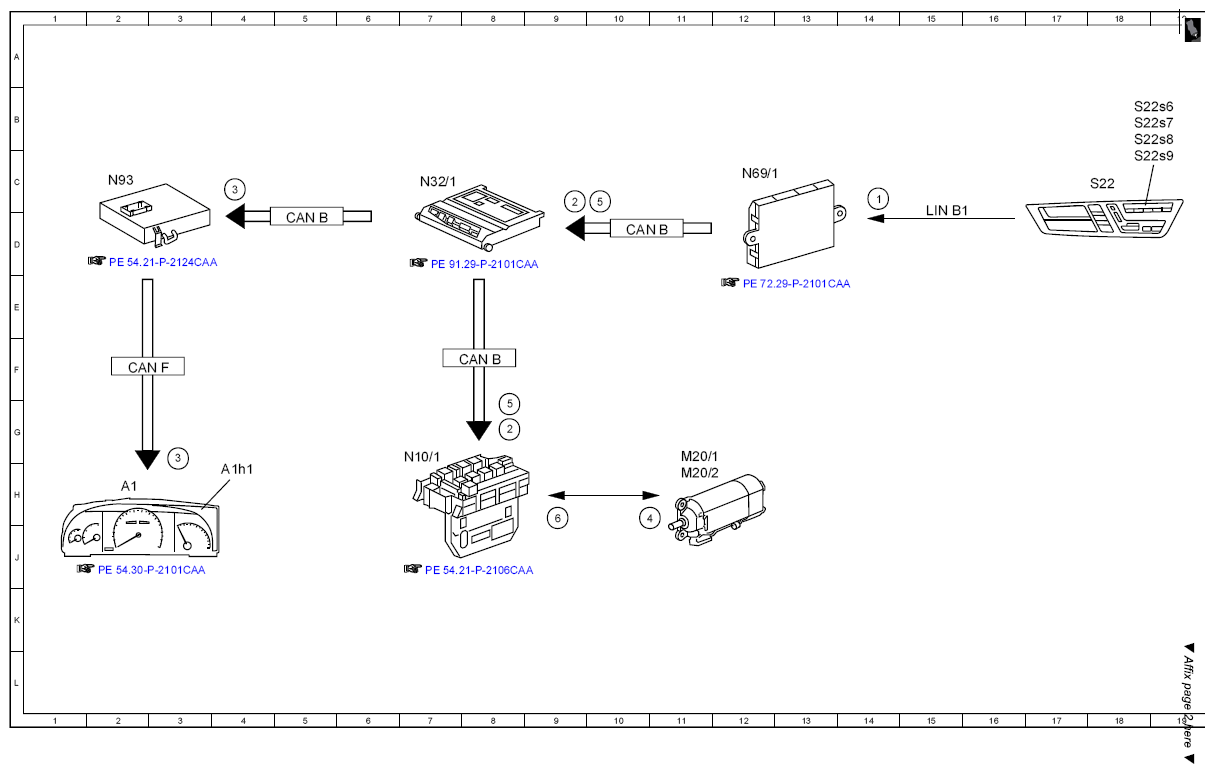

| 1 |
Seat adjustment switch group, status |
14C |
| 2 |
Store memory positions, request |
8G |
| 2 |
Store memory positions, request |
9C |
| 3 |
Acknowledgment tone after memory positions stored successfully, request |
4C |
| 3 |
Acknowledgment tone after memory positions stored successfully, request |
3G |
| 4 |
Steering column motor, actuation |
10H |
| 5 |
Move to memory position, request |
10D |
| 5 |
Move to memory position, request |
8G |
| 6 |
Steering column motor, signal |
9H |
| A1 |
Instrument cluster |
2J |
| A1h1 |
Warning buzzer |
3J |
| CAN B |
Interior CAN |
5C |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
8F |
| CAN F |
Central CAN |
2F |
| LIN B1 |
Front door LIN |
15C |
| M20/1 |
Steering column in/out motor |
12H |
| M20/2 |
Steering column up/down motor |
12H |
| N10/1 |
Front SAM control unit with fuse and relay module |
8H |
| N32/1 |
Left front seat control unit |
8D |
| N69/1 |
Left door control unit |
13D |
| N93 |
Central gateway control unit |
3D |
| S22 |
Left front seat operation switch group |
18D |
| S22s6 |
Memory switch |
19D |
| S22s7 |
Memory 1 switch |
19D |
| S22s8 |
Memory 2 switch |
19D |
| S22s9 |
Memory 3 switch |
19D |
