Electrically adjustable steering column (EVL) block diagram - GF46.15-P-0003-02LE

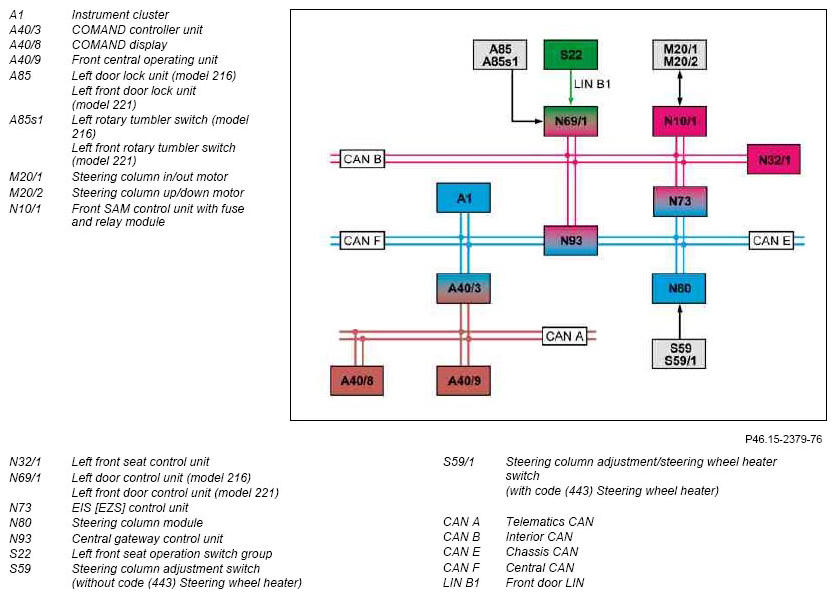

Fig 1: Electrically Adjustable Steering Column (EVL) Block Diagram

G07641534

Courtesy of MERCEDES-BENZ USA
