Blower regulator for front seat ventilation, component description - GF91.30-P-5220SX
MODEL 216.3, 221.0 /1 with CODE (401) Front deluxe seats, incl. seat heating and seat ventilation up to Model Year 8

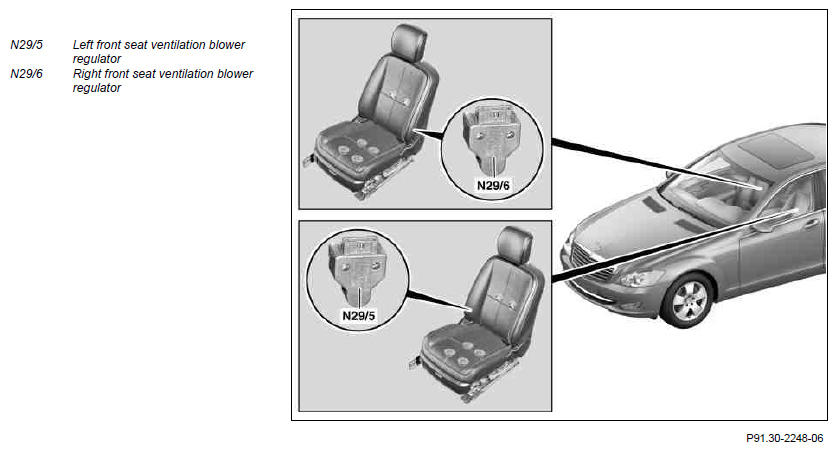

Shown on model 221.0
Location
The blower regulators are each located at the bottom at the side of the seat belt buckle in the backrest frame.
Task
The blower regulators actuate the following motor groups as a function of the set seat ventilation level (actuation via the left front seat control unit (N32/1) or the right front seat control unit (N32/2)):
- Left front seat cushion ventilation motor group (M18/9)
- Left front seat backrest ventilation motor group (M18/10)
- Right front seat cushion ventilation motor group (M18/11)
- Right front backrest ventilation motor group (M18/12)
