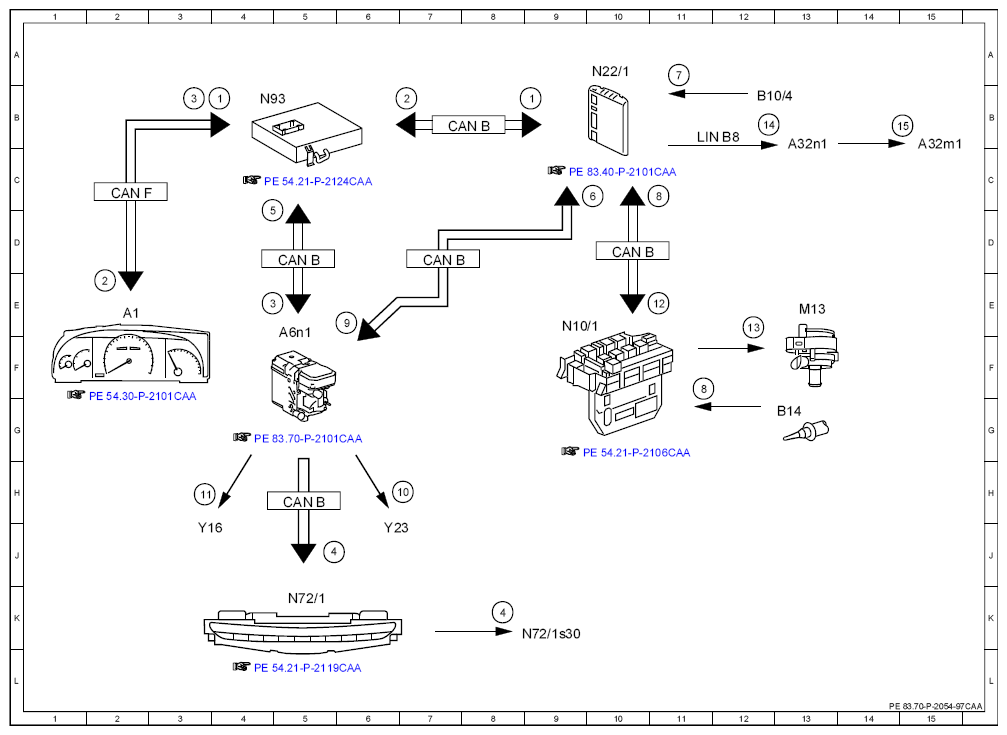

| 1 |
Heating duration, request |
9B |
| 1 |
Heating duration, request |
4B |
| 2 |
Heating duration, signal |
7B |
| 2 |
Heating duration, signal |
2E |
| 3 |
Start heating/ventilation, signal |
4E |
| 3 |
Start heating/ventilation, signal |
3B |
| 4 |
Stationary heater button, request |
8K |
| 4 |
Stationary heater button, request |
5J |
| 5 |
Preselection time menu, message |
4D |
| 6 |
Heating/ventilation, status |
10C |
| 7 |
In-car temperature sensor, signal |
11A |
| 8 |
Outside temperature indicator temperature sensor, signal |
11C |
| 8 |
Outside temperature indicator temperature sensor, signal |
11F |
| 9 |
Heat, request |
6E |
| 10 |
Fuel pump, actuation |
7H |
| 11 |
Stationary heater switchover valve, actuation |
3H |
| 12 |
Hot water circulation pump, request |
11E |
| 13 |
Hot water circulation pump, actuation |
12E |
| 14 |
Blower motor, request |
12B |
| 15 |
Blower motor, actuation |
14B |
| A1 |
Instrument cluster |
2E |
| A32m1 |
Blower motor |
15C |
| A32n1 |
Blower regulator |
13C |
| A6n1 |
STH control unit |
5F |
| B10/4 |
In-car temperature sensor |
12B |
| B14 |
Outside temperature display temperature sensor |
13G |
| CAN B |
Interior CAN |
5H |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7B |
| CAN B |
Interior CAN |
5D |
| CAN F |
Central CAN |
2C |
| LIN B8 |
Climate control LIN |
12B |
| M13 |
Coolant circulation pump |
13E |
| N10/1 |
Front SAM control unit with fuse and relay module |
9E |
| N22/1 |
AAC [KLA] control unit |
10A |
| N72/1 |
Upper control panel control unit |
5K |
| N72/1s30 |
STH/residual heat button |
8K |
| N93 |
Central gateway control unit |
4B |
| Y16 |
STH switchover valve |
3J |
| Y23 |
STH fuel metering pump |
6J |
