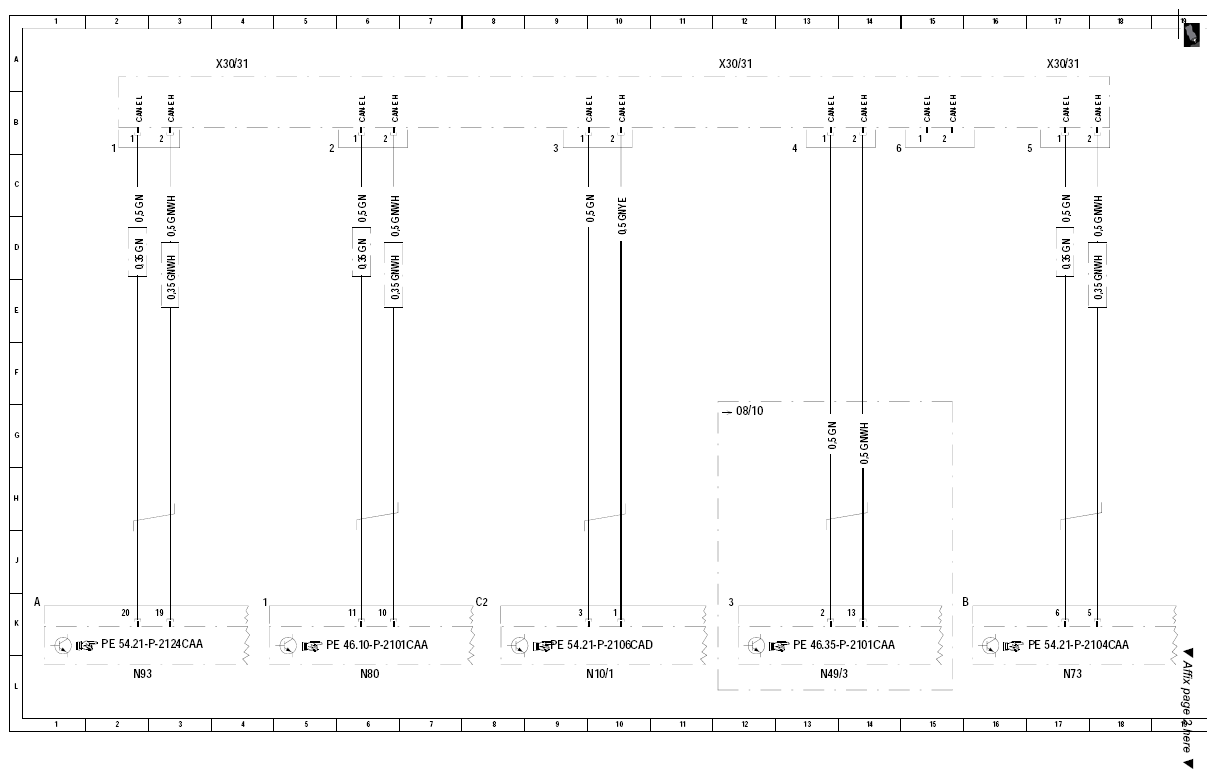

Wiring diagram of chassis CAN - PE00.19-P-2195-99CAB
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23L |
| N10/1 | Front SAM control module with fuse and relay module | 9L |
| N49/3 | Electromechanical steering system control unit | 13L |
| N73 | DI control module | 17L |
| N80 | Steering column module | 6L |
| N93 | Central gateway control module | 2L |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 4A |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 12A |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 17A |
