Wiring diagram of chassis CAN - PE00.19-P-2195-97CAA

Code: Designation: Position:
A0 Color code key 56L
A40/11 Multifunction camera 43L
A91/1 Electrohydraulic power steering 24L
Code 237 Active Blind Spot Assist 5G
Code 238 Active Lane Keeping Assist 5G
Code 238 Active Lane Keeping Assist 42F
Code 476 Automatic lane detection 42F
Code 513 Speed Limit Assist 42F
Code 608 Adaptive Highbeam Assist 42F
N10/1 Front SAM control unit with fuse and relay module 28L
N101 Night vision assist control unit 39L
N2/7 Restraint systems control unit 36L
N3/10 ME-SFI [ME] control unit 16L
N3/10 ME-SFI [ME] control unit 16L
N3/10 ME-SFI [ME] control unit 17L
N3/10 ME-SFI [ME] control unit 20L
N47-5 ESP control unit 32L
N51 AIRMATIC with ADS control unit 11L
N51/2 ABC control unit 11L
N62 PTS control unit 47L
N62/1 Radar sensors control unit (SGR) 6L
N62/1 Radar sensors control unit (SGR) 7L
N62/2 Video and radar sensor system control unit 7L
N82/1 Vehicle power supply control unit 3L
N88 TPM [RDK] control unit 3L
U1019 Valid for engine 278 19E
U1028 Valid for engine 157 19E
U12 Valid for left-hand drive vehicles 13E
U13 Valid for right-hand drive vehicles 13E
U152 Valid for engine 156 14E
U484 Valid for M273 ME 14E
U502 Valid for AIRMATIC 9E
U503 Valid for ABC 9E
U645 Valid for tire pressure monitor system 1E
U779 Valid for engine 275 17G
U779 Valid for engine 275 16G
U779 Valid for engine 275 15E
U907 Valid for night view assist 38E
U909 Valid for DISTRONIC PLUS 5F
U909 Valid for DISTRONIC PLUS 6E
U909 Valid for DISTRONIC PLUS 5E
U954 Valid for multifunction camera for Speed Limit Assist 42E
U987 Valid for Distronic Plus (light) 5E
W15/1 Ground (right footwell) 14L
W34/1 Ground (electronics - left footwell) 14L
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 29A
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 4A
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 12A
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 20A
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 36A
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 45A

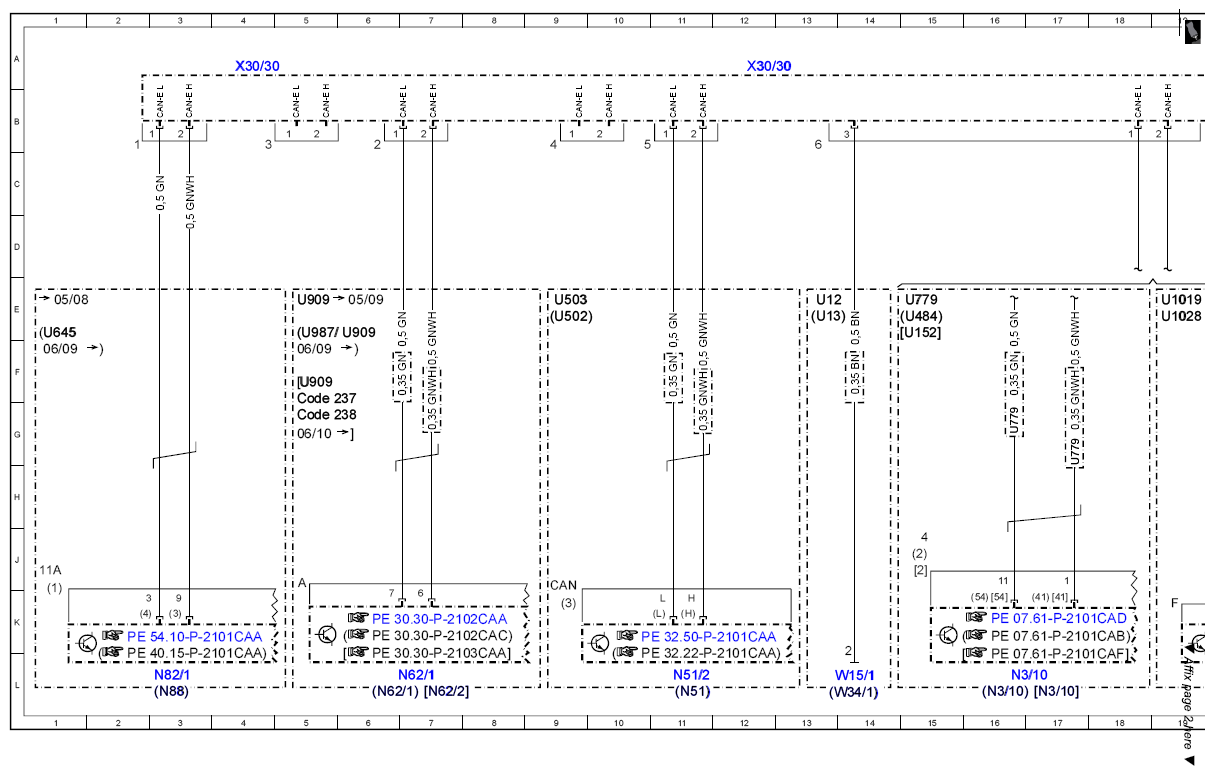

Fig 1: Chassis CAN - Wiring Diagram (1 Of 4)
G07643570Courtesy of MERCEDES-BENZ USA

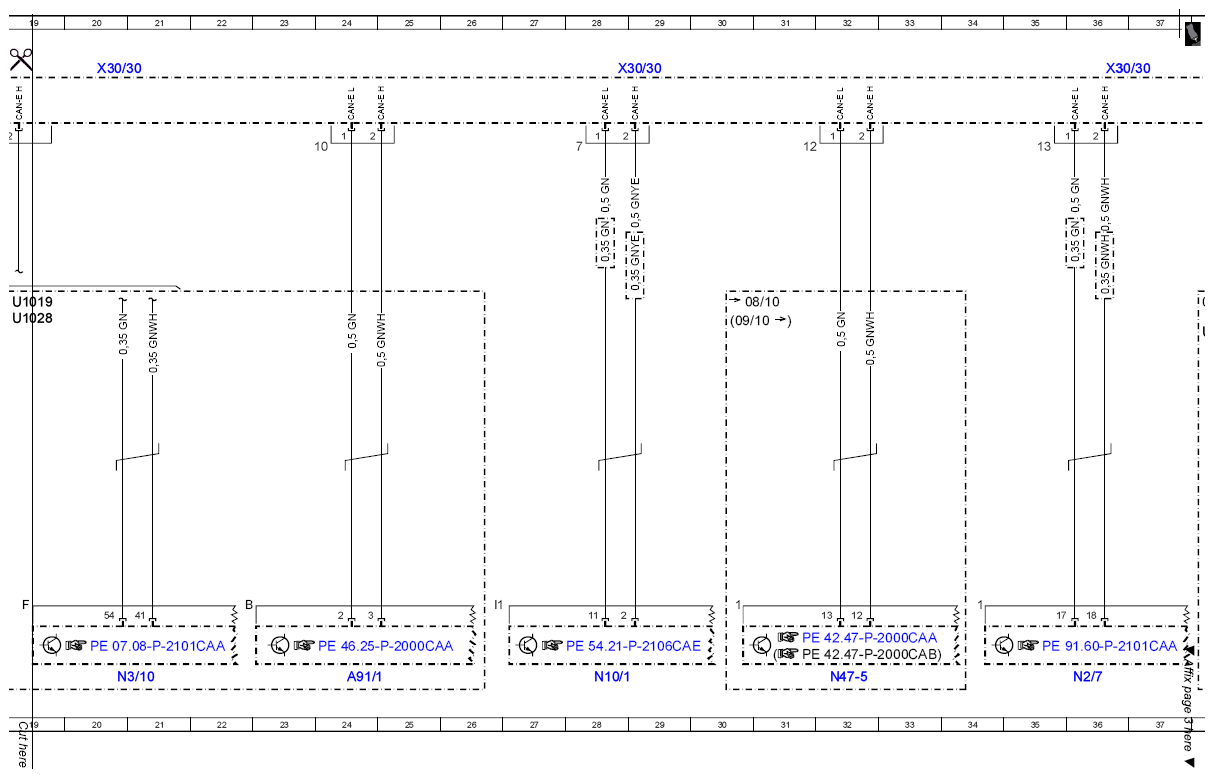

Fig 2: Chassis CAN - Wiring Diagram (2 Of 4)
G07643571Courtesy of MERCEDES-BENZ USA

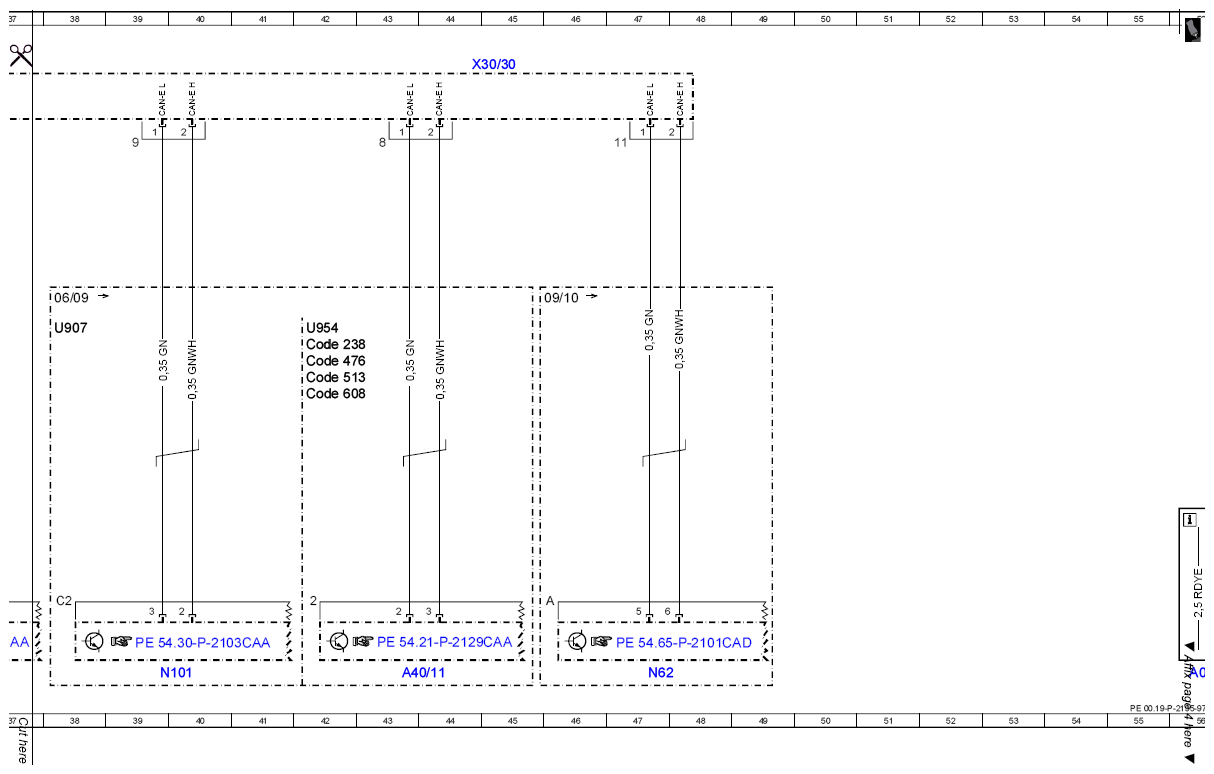

Fig 3: Chassis CAN - Wiring Diagram (3 Of 4)
G07643572Courtesy of MERCEDES-BENZ USA

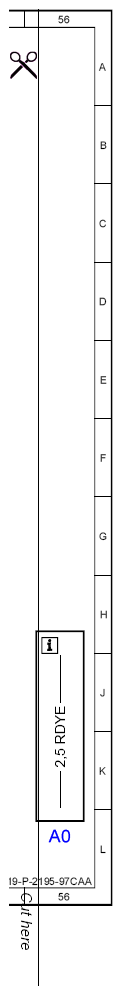

Fig 4: Chassis CAN - Wiring Diagram (4 Of 4)
G07643573Courtesy of MERCEDES-BENZ USA
