Location and assignment of line and plug connectors, trunk, right - GF00.19-P-1000-07CAA

Model 216

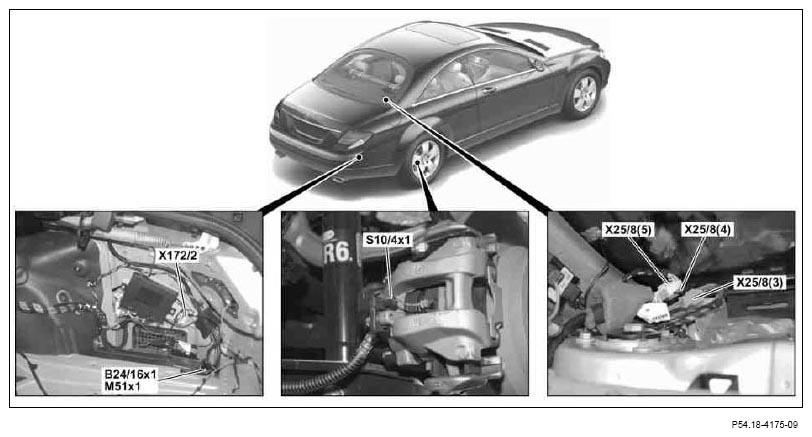

Fig 1: Identifying Right Trunk Line And Plug Connectors Location (1 Of 2)
G07300242Courtesy of MERCEDES-BENZ USA

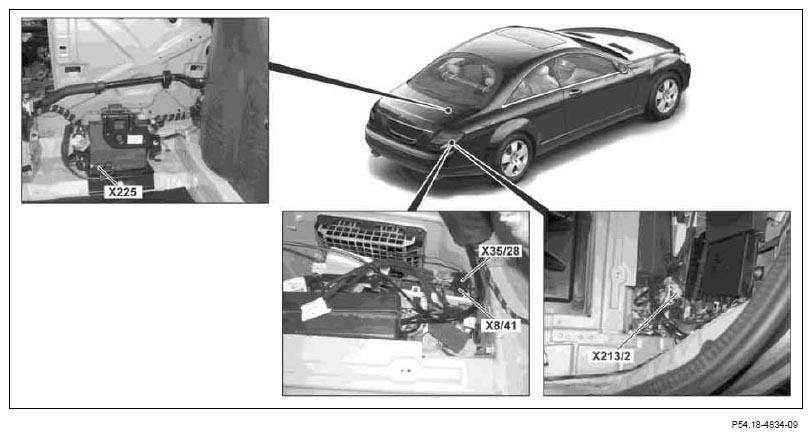

Fig 2: Identifying Right Trunk Line And Plug Connectors Location (2 Of 2)
G07300243Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors Cable colors Notes
B24/16x1 Trunk lid position sensor connector BNBU PLUG 1 SOCKET BNBU
BU PLUG 2 SOCKET BU
BURD PLUG 3 SOCKET BURD
M51x1 TLC [HDS] hydraulic pump connector
Up to 05/08 PLUG 1 SOCKET RDYE
Up to 05/08 PLUG 2 SOCKET RDGN
S10/4x1 Right rear brake pad contact sensor connector PLUG 1 SOCKET
PLUG 2 SOCKET
X8/41 Trunk lid position sensor connector BNBU PLUG 1 SOCKET BK
BU PLUG 2 SOCKET WH
BURD PLUG 3
4		 SOCKET RD
X25/8 (3) Overhead control panel and FFS [RBA] connector BKGN PLUG 1 SOCKET BKGN
BN PLUG 2 SOCKET BN
BUBN PLUG 3 SOCKET BUBN
BNBU PLUG 4 SOCKET BNBU Interior motion sensor
RD PLUG 5 SOCKET RD Interior motion sensor
RDBK PLUG 6 SOCKET RDBK Interior motion sensor
BN PLUG 7 SOCKET BN
BNRD PLUG 8 SOCKET BNRD
X25/8 (4) Overhead control panel and FFS [RBA] connector BN PLUG 1 SOCKET BN
RD PLUG 2 SOCKET RD
BN PLUG 3 SOCKET BN
RD PLUG 4
5
6		 SOCKET RD
BN PLUG 7 SOCKET BN
BNRD PLUG 8 SOCKET BNRD
X25/8 (5) Overhead control panel and FFS [RBA] connector
Up to 05/09 WH PLUG 1 SOCKET WH Sound system
Up to 05/09 BN PLUG 2 SOCKET BN Sound system
PK PLUG 3 SOCKET PK SBS, Japan
PLUG 4 SOCKET
orange PLUG 5 SOCKET OG SBS, Japan
Up to 05/09 TR PLUG 6 SOCKET TR Sound system
PLUG 7 SOCKET
TR PLUG 8 SOCKET TR SBS, Japan
GN PLUG 9 SOCKET GN SBS, Japan
PLUG 10 SOCKET
Up to 05/09 YEPK PLUG 11 SOCKET YEPK TELEAID, USA
Up to 05/09 YEGN PLUG 12 SOCKET YEGN TELEAID, USA
Up to 05/09 BN PLUG 13 SOCKET BN TELEAID, USA
Up to 05/09 GYBU PLUG 14 SOCKET GYBU TELEAID, USA
X35/28 PTS, rear bumper connector YEWH PLUG 1 SOCKET YEWH
YEVT PLUG 2 SOCKET YEVT
YERD PLUG 3 SOCKET YERD
BKYE PLUG 4 SOCKET BKYE
BNBU PLUG 5 SOCKET BNBU
BUYE PLUG 6 SOCKET BUYE
X172/2 Radar sensors/FFS [RBA] connector, rear bumper RDBK PLUG 1 SOCKET RDBK
VTWH PLUG 2 SOCKET VTWH
VT PLUG 3 SOCKET VT
BN PLUG 4 SOCKET BN
X213/2 Rear bumper Distronic (DTR) connecting point YEWH PLUG 1 SOCKET YEWH Parktronic
YEVT PLUG 2 SOCKET YEVT Parktronic
YERD PLUG 3 SOCKET YERD Parktronic
BKYE PLUG 4 SOCKET BKYE Parktronic
BNBU PLUG 5 SOCKET BNBU Parktronic
BUYE PLUG 6 SOCKET BUYE Parktronic
RDBK PLUG 7 SOCKET RDBK Distronic
VTWH PLUG 8 SOCKET VTWH Distronic
VT PLUG 9 SOCKET VT Distronic
BN PLUG 10 SOCKET BN Distronic
X225 Fuse for backup battery connecting point RDGN PLUG 1
2		 SOCKET RDGN
