Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05CAA

Model 216

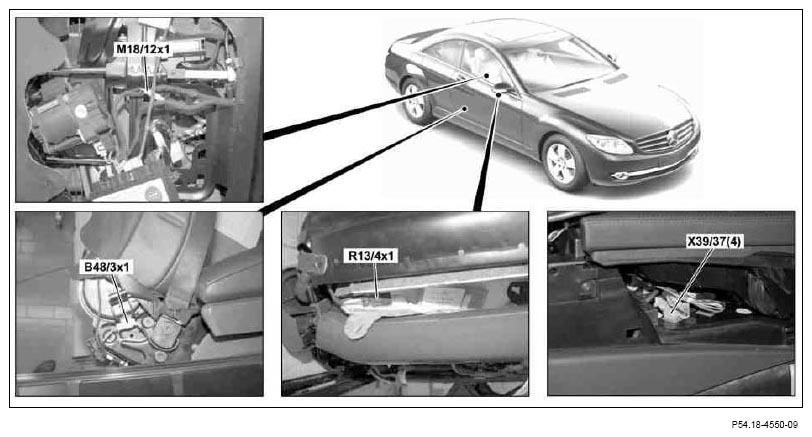

Fig 1: Identifying Right Interior Compartment Line And Plug Connectors Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

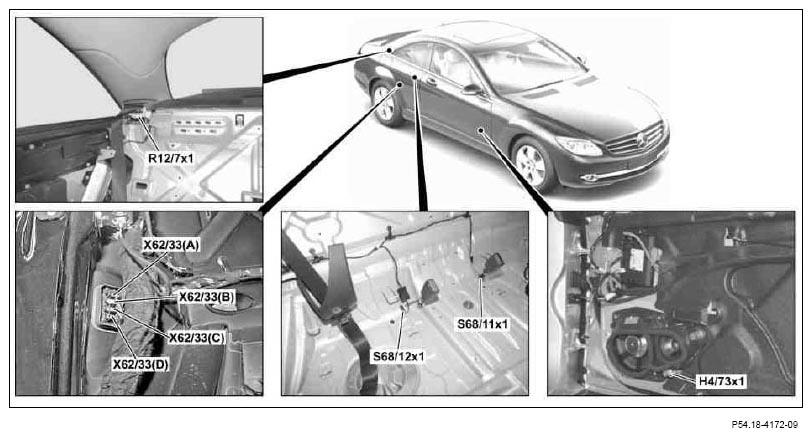

Fig 2: Identifying Right Interior Compartment Line And Plug Connectors Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

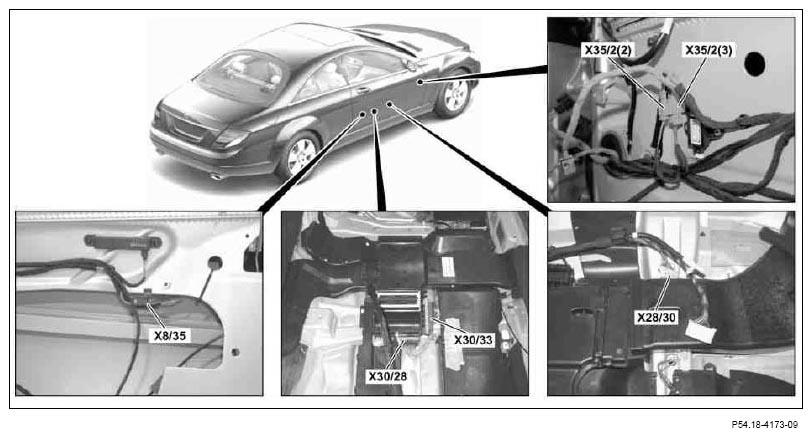

Fig 3: Identifying Right Interior Compartment Line And Plug Connectors Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA

Code	Designation	Cable colors		Cable colors	Notes
B48/3x1	Belt tension sensor connector		1	BNWH	WSS
			2	BUWH	WSS
			3	BKRD	WSS
H4/73x1	Right door Sound woofer and midrange speaker group connector		1	BNGN	Sound system
			2	GN	Sound system
			3	GY	Sound system
			4	GN	Sound system
			5	WHGN	Sound system
			6	BNWH	Sound system
M18/12x1	Right front seat backrest ventilation motor group connector	RDBU	1	RDBU
		BNBU	2	BNBU
R12/7x1	Right rear ETR squib connector		1	YE
			2	BN
R13/4x1	Right front backrest heater element connector	BNVT	1	BNVT
		RDVT	2	RDVT
S68/11x1	Left rear seat belt buckle switch connector		1	BN
			2	BNYE
S68/12x1	Right rear seat belt buckle switch connector		1	BN
			2	BNGN
X8/35	Right door handle connector		1	BNYE	Keyless Go
			2	BUYE	Keyless Go
X28/30	Passenger-side FFS [RBA]/seat airbag separation point	BN	1	BN	USA, WSS
			1	BN	ECE
		RDWH	2	RDWH	USA, WSS
			2	PKGN	ECE
		BNRD	3	BNRD	USA, WSS
			3	VTGN	ECE
		BN	4	BN	USA, WSS
			4	GNYE	ECE
		RDYE	5	WH
		BN	6	BN
		BK	7	RD
			8
		VTBU	9	VTBU
			10
		WHGN	11	WHGN
			12
		YE	13	BN
		BU	14	BNBU
X30/28	Vehicle dynamics CAN voltage distributor connector		1.1	VT
			1.2	VTWH
			2.1	VT
			2.2	VTWH
			3.1
			3.2
			4.1	VT
			4.2	VTWH
			5.1	VT
			5.2	VTWH
			6.1	VT
			6.2	VTWH
			7.1
			7.2
X30/33	Right interior CAN/FFS [RBA] voltage distributor connector		1.1	BN
			1.2	BNRD
			1.3	BN
			2.1	BN
			2.2	BNRD
			3.1	BN
			3.2	BNRD
			4.1	BN
			4.2	BNRD
			5.1	BN
			5.2	BNRD
			6.1	BN
			6.2	BNRD
			7.1	BN
			7.2	BNBK
			8.1	BN
			8.2	BNRD
			9.1	BN
			9.2	BNRD
			10.1
			10.2
			11.1	BN	As of 06/08
			11.2	BNRD	As of 06/08
			12.1	BN
			12.2	BNRD
			13.1
			13.2
X35/2(2)	Right front door and FFS [RBA] connector	BNYE	1	BNOG	Keyless Go
		BUYE	2	BURD	Keyless Go
X35/2 (3)	Right front door and FFS [RBA] connector	RDVT	1	RDGN	Keyless Go
		BNVT	2	GNBN	Keyless Go
X39/37 (4)	CTEL separation point	TR	1	TR
		RD	2	OGWH
		BU	3	BUWH
		GN	4	BNWH
		BK	5	YEWH
			6
		RDWH	7	OG
		BUWH	8	BU
		GNWH	9	BN
		BKWH	10	GN
X62/33 (A)	Right rear axle multiple circuit junction connector		1	BN
			2	BNGY
			3
			4
X62/33 (B)	Right rear axle multiple circuit junction connector	BU	1	BU
		BN	2	BN
			3
			4
X62/33 (C)	Right rear axle multiple circuit junction connector		1	YEBU
			2	BKRD
			3	YEBN
X62/33 (D)	Right rear axle multiple circuit junction connector		1	BUYE
			2	BUPK	Up to 08/10
			2 3 4	BUBK	As of 09/10
