Location and assignment of line and plug connectors, engine compartment, right - GF00.19-P-1000-02CAA

Model 216

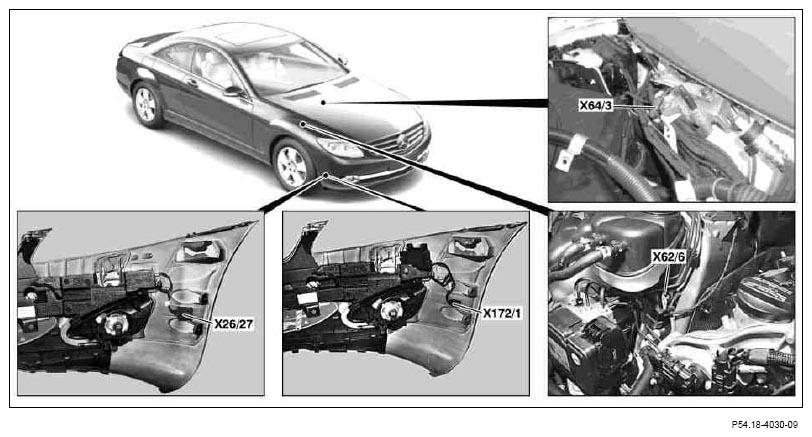

Fig 1: Identifying Engine Compartment Line And Plug Connectors Location - Right Side (1 Of 3)
G07300227Courtesy of MERCEDES-BENZ USA

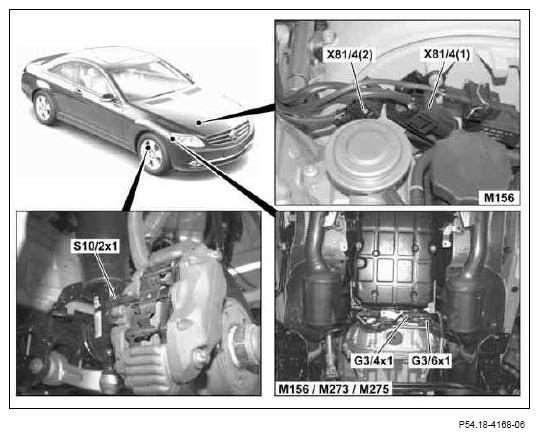

Fig 2: Identifying Engine Compartment Line And Plug Connectors Location - Right Side (2 Of 3)
G07300228Courtesy of MERCEDES-BENZ USA

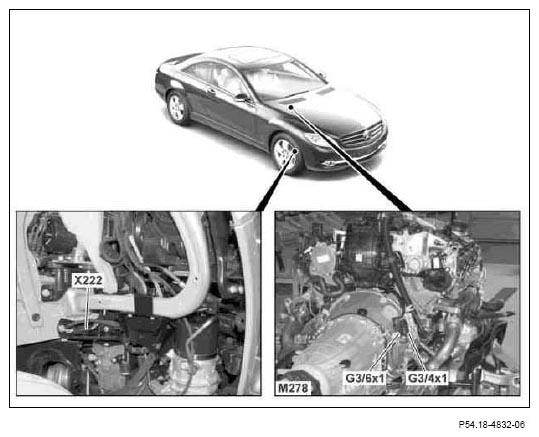

Fig 3: Identifying Engine Compartment Line And Plug Connectors Location - Right Side (3 Of 3)
G07300229Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors Cable colors Notes
  Engine 156
G3/4x1 Connector, right O2 sensor, upstream CAT PLUG 1 SOCKET BU
PLUG 2 SOCKET BKBU
PLUG 3 SOCKET GN
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET WH
PLUG 6 SOCKET RDGN
  Engine 273
G3/4x1 Connector, right O2 sensor, upstream CAT PLUG 1 SOCKET BU
PLUG 2 SOCKET BKBU
PLUG 3 SOCKET GN
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET WH
PLUG 6 SOCKET BNBK
  Engine 275
G3/4x1 Connector, right O2 sensor, upstream CAT RDGN PLUG 1 SOCKET
WHBU PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
YEBU PLUG 4 SOCKET
  Engines 157, 278
G3/4x1 Connector, right O2 sensor, upstream CAT PLUG 1 SOCKET BUGN
PLUG 2 SOCKET BUGY
PLUG 3 SOCKET BUBK
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET BUVT
PLUG 6 SOCKET BUWH
  Engine 273
G3/6x1 Connector, right O2 sensor, downstream CAT RDGN PLUG 1 SOCKET
VT PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
RD PLUG 4 SOCKET
  Engine 275
G3/6x1 Connector, right O2 sensor, downstream CAT RDGN PLUG 1 SOCKET
BNWH PLUG 2 SOCKET
GNBK PLUG 3 SOCKET
BK PLUG 4 SOCKET
  Engines 157, 278
G3/6x1 Connector, right O2 sensor, downstream CAT RDGN PLUG 1 SOCKET
GNPK PLUG 2 SOCKET
BNGY PLUG 3 SOCKET
GYPK PLUG 4 SOCKET
S10/2x1 Right front brake pad contact sensor connector PLUG 1 SOCKET BN
PLUG 2 SOCKET BNGN
X26/27 PTS, front bumper connector BKYE PLUG 1 SOCKET BKYE
BNBU PLUG 2 SOCKET BNBU
BKWH PLUG 3 SOCKET BKWH
WHRD PLUG 4 SOCKET WHRD
YEWH PLUG 5 SOCKET YEWH
YEVT PLUG 6 SOCKET YEVT
YERD PLUG 7 SOCKET YERD
WHYE PLUG 8 SOCKET WHYE
X62/6 Right front axle multiple circuit junction connector, major assembly compartment 1
2
PLUG 3 SOCKET WHYE
PLUG 4 SOCKET WH
PLUG 5 SOCKET WHPK
PLUG 6 SOCKET WHBK
PLUG 7 SOCKET YEPK
X64/3 Wiper park heater connector BN PLUG 1 SOCKET BN
BK PLUG 2 SOCKET RDBK
  Engine 156
X81/4(1) Engine wiring harness/throttle valve actuator connector BU PLUG 1 SOCKET BU
WH PLUG 2 SOCKET WH
YE PLUG 3 SOCKET YE
GY PLUG 4
5		 SOCKET GY
BK PLUG 6 SOCKET BK
X81/4(2) Engine wiring harness/throttle valve actuator connector BKBU PLUG 1 SOCKET BKBU
BKWH PLUG 2 SOCKET BKWH
BKYE PLUG 3 SOCKET BKYE
VT PLUG 4
5		 SOCKET VT
BKVT PLUG 6 SOCKET BKVT
X172/1 Radar sensors/FFS [RBA] connector, front bumper RDBK PLUG 1 SOCKET RDBK
VTWH PLUG 2 SOCKET VTWH
VT PLUG 3 SOCKET VT
BN PLUG 4
5
6		 SOCKET BN
X222 AIRMATIC emergency filling connector GYRD PLUG 1 SOCKET GYRD
GYGN PLUG 2 SOCKET GYGN
GYWH PLUG 3 SOCKET GYWH
GYYE PLUG 4 SOCKET GYYE
GYBU PLUG 5 SOCKET GYBU
GYVT PLUG 6 SOCKET GYVT
