Location and assignment of line and plug connectors, engine compartment, left - GF00.19-P-1000-01CAA

Model 216

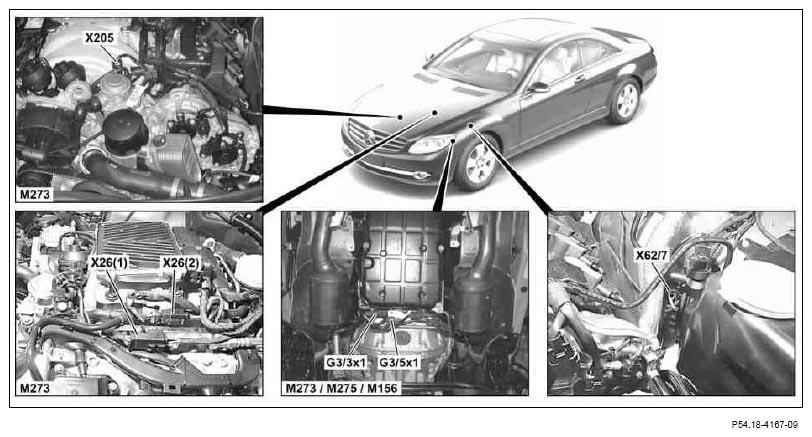

Fig 1: Identifying Engine Compartment Line And Plug Connectors Location - Left Side (1 Of 4)
G07300223Courtesy of MERCEDES-BENZ USA

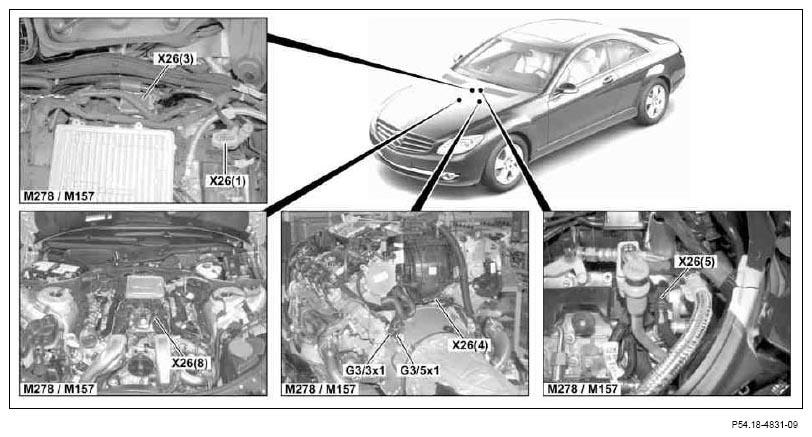

Fig 2: Identifying Engine Compartment Line And Plug Connectors Location - Left Side (2 Of 4)
G07300224Courtesy of MERCEDES-BENZ USA

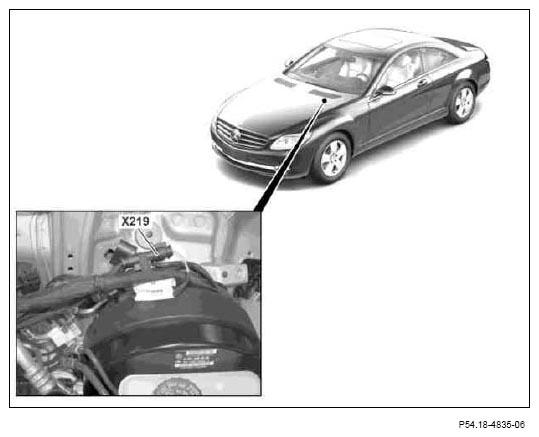

Fig 3: Identifying Engine Compartment Line And Plug Connectors Location - Left Side (3 Of 4)
G07300225Courtesy of MERCEDES-BENZ USA

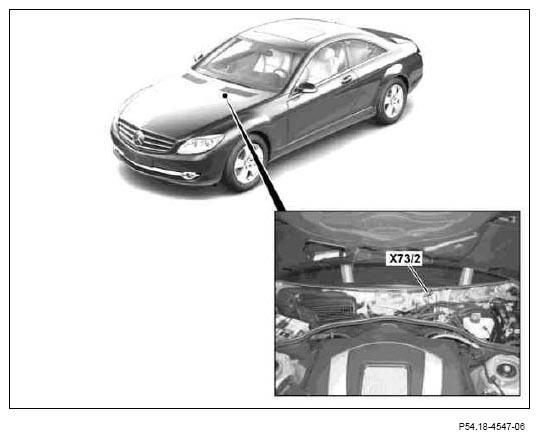

Fig 4: Identifying Engine Compartment Line And Plug Connectors Location - Left Side (4 Of 4)
G07300226Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors Cable colors Notes
  Engine 156
G3/3x1 Connector, left O2 sensor, upstream CAT PLUG 1 SOCKET BKVT
PLUG 2 SOCKET BKGN
PLUG 3 SOCKET PK
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET YEWH
PLUG 6 SOCKET BKYE
  Engine 273
G3/3x1 Connector, left O2 sensor, upstream CAT PLUG 1 SOCKET BKVT
PLUG 2 SOCKET BKGN
PLUG 3 SOCKET BNYE
PLUG 4 SOCKET RDYE
PLUG 5 SOCKET YEWH
PLUG 6 SOCKET BKYE
  Engine 275
G3/3x1 Connector, left O2 sensor, upstream CAT RDGN PLUG 1 SOCKET
WHGY PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
YERD PLUG 4 SOCKET
  Engines 157, 278
G3/3x1 Connector, left O2 sensor, upstream CAT PLUG 1 SOCKET BKGN
PLUG 2 SOCKET BKGY
PLUG 3 SOCKET BKPK
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET BKVT
PLUG 6 SOCKET BKWH
  Engine 273
G3/5x1 Connector, left O2 sensor, downstream CAT RDYE PLUG 1 SOCKET
VTYE PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
GYWH PLUG 4 SOCKET
  Engine 275
G3/5x1 Connector, left O2 sensor, downstream CAT RDGN PLUG 1 SOCKET
BNGY PLUG 2 SOCKET
GNBK PLUG 3 SOCKET
BKBN PLUG 4 SOCKET
  Engines 157, 278
G3/5x1 Connector, left O2 sensor, downstream CAT RDGN PLUG 1 SOCKET
WHBK PLUG 2 SOCKET
BNGY PLUG 3 SOCKET
PKGN PLUG 4 SOCKET
  Engine 273
X26(1) Interior and engine wiring harness connector BUGN PLUG 1 SOCKET BUGN
BN PLUG 2 SOCKET BN
VTWH PLUG 3 SOCKET VTWH
RDGY PLUG 4 SOCKET RDBU
RDGN PLUG 5 SOCKET RDGN
BNBU PLUG 6 SOCKET BNBU
GYOG PLUG 7 SOCKET
RDBK PLUG 8 SOCKET RDBK
  Engines 157, 278
X26(1) Interior and engine wiring harness connector RDYE PLUG 1 SOCKET BUGN
BNYE PLUG 2
3
4		 SOCKET BNBU
RDGY PLUG 5 SOCKET RDBU
RDGN PLUG 6 SOCKET RDGN
RDBK PLUG 7 SOCKET RDBK
VTWH PLUG 8 SOCKET VTWH
BNWH PLUG 9
10
11
12
13
14		 SOCKET BN
  Engine 273
X26 (2) Interior and engine wiring harness connector PLUG 1 SOCKET
RDWH PLUG 2 SOCKET RDWH
  Engines 157, 278
X26(3) Interior and engine wiring harness connector YEVT PLUG 1 SOCKET YEVT
WHVT PLUG 2 SOCKET WHVT
GYVT PLUG 3 SOCKET GYVT
BNVT PLUG 4 SOCKET BNVT
RDVT PLUG 5 SOCKET RDVT
VTGN PLUG 6 SOCKET VTGN
BNGY PLUG 7 SOCKET BNGY
BKYE PLUG 8 SOCKET BKYE
WHYE PLUG 9 SOCKET WHYE
BNGN PLUG 10 SOCKET BNGN
RDYE PLUG 11
12
13
14
15
16		 SOCKET RDYE
  Engines 157, 278
X26 (4) Interior and engine wiring harness connector GNBK PLUG 1 SOCKET GNBK
GNBU PLUG 2 SOCKET GNBU
PKBK PLUG 3 SOCKET PKBK
PKBU PLUG 4 SOCKET PKBU
  Engines 157, 278
X26 (5) Interior and engine wiring harness connector GYBK PLUG 1 SOCKET GYBK
GYBU PLUG 2 SOCKET GYBU
VTBK PLUG 3 SOCKET VTBK
VTBU PLUG 4 SOCKET VTBU
  Engines 157, 278
X26 (8) Interior and engine wiring harness connector YEBU PLUG 1 SOCKET YEBU
BNGN PLUG 2 SOCKET BNGN
RDYE PLUG 3 SOCKET RDYE
X62/7 Left front axle multiple circuit junction connector, major assembly compartment 1
2
PLUG 3 SOCKET BKYE
PLUG 4 SOCKET BK
PLUG 5 SOCKET WHGN
PLUG 6 SOCKET WHGY
PLUG 7 SOCKET GYRD
X73/2 Coolant circulation pump connector BKYE PLUG 1 SOCKET BKYE LHD
BN PLUG 2 SOCKET BN LHD
  Engine 273
X205 Tumble flap/variable intake manifold switchover valves connector VTWH PLUG 1 SOCKET VTWH
RDGN PLUG
RDGN PLUG		 2 SOCKET RDGN
GNBN PLUG 3 SOCKET GNBU
X219 Daytime running lights/front fog lamps and engine wiring harness connector YEBU PLUG 1 SOCKET YEBU
YEOG PLUG 2 SOCKET GYOG
GYBN PLUG 3 SOCKET GYBN
YEBN PLUG 4 SOCKET YEBN
