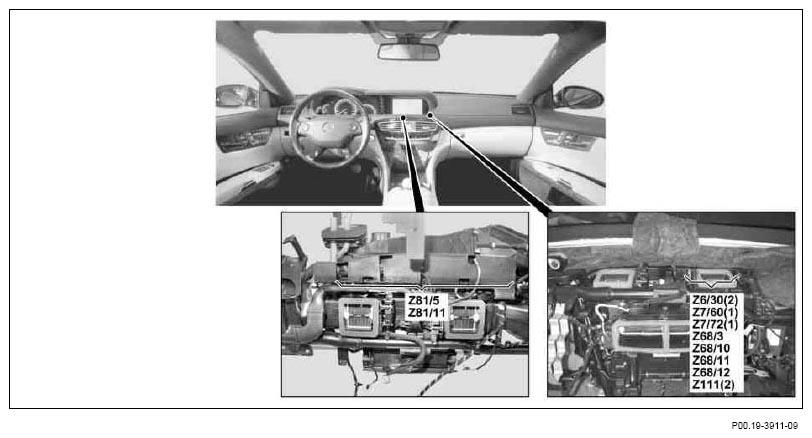

Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit - GF00.19-P-3000-03CAA
Model 216
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z6/30(2) | Circuit 31 connector sleeve | |||
| RL | ← W15 | Power ground (electronics) | ||
| LHD | ← W34 | Ground (left footwell) | ||
| Navigation, as of 06/08 | → A2/30 | Navigation processor | 1.1 1.8 |
|
| Japan | → A40/3 | COMAND control unit | 6.3 6.4 |
|
| Japan | → A50/3 | Electronic toll collection (ETC) control unit | TX1.4 | |
| →E13/1 | Glove compartment light | 1 | ||
| →E17/15 | Glove compartment light | 1 | ||
| →E17/16 | Left front footwell lamp | 1 | ||
| Z7/60 (1) | 5 V output connector sleeve (solder connector in wiring harness) | ← N10/1 | Front SAM control unit with fuse and relay module | C5.3 I5.2 |
| → B12 | Refrigerant pressure sensor | 3 | ||
| → N22/1 | AAC [KLA] control unit | B.18 | ||
| → R41/1 | Left side air outlet potentiometer | 5 | ||
| → R41/2 | Right side air outlet potentiometer | 5 | ||
| → R41/3 | Front center air outlet potentiometer | 5 | ||
| → R41/4 | Rear center air outlet potentiometer | 5 | ||
| Z7/72(1) | COC nozzles and sensors sensor ground connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | C5.2 I5.15 |
| → N22/1 | AAC [KLA] control unit | B.5 | ||
| → B12 | Refrigerant pressure sensor | 1 | ||
| → R41/1 | Left side air outlet potentiometer | 2 | ||
| → R41/2 | Right side air outlet potentiometer | 2 | ||
| → R41/3 | Front center air outlet potentiometer | 2 | ||
| → R41/4 | Rear center air outlet potentiometer | 2 | ||

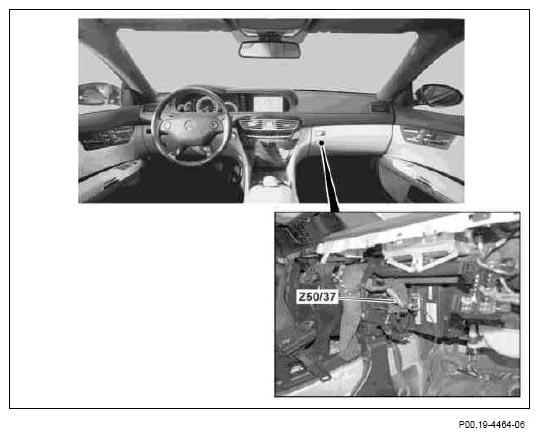

| Z50/37 | Air conditioner compressor ground connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | C5.32 |
| →N22/1 | AAC [KLA] control unit | B.4 | ||
| RL | → W15 | Power ground (electronics) | ||
| LHD | → W34 | Ground (left footwell) | ||
| Z68/3 | AC LIN bus data connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | C5.13 |
| → A32 | AC air recirculation unit | 4 | ||
| → N22/1 | AAC KLA] control unit | B.24 | ||
| Z68/10 | OBD LIN bus ground connector sleeve | ← N72/1 | Upper control panel control unit | 1.2 |
| →A70/1 | Analog clock | 1 | ||
| →S1 | Exterior lamp switch | 1.1 | ||
| →S6/2 | Cockpit switch group | 1 | ||
| Z68/11 | OBD LIN bus positive connector sleeve | ← N72/1 | Upper control panel control unit | 1.8 |
| → A70/1 | Analog clock | 2 | ||
| → S1 | Exterior lamp switch | 1.2 | ||
| → S6/2 | Cockpit switch group | 2 | ||
| Z68/12 | OBD LIN bus data connector sleeve | → N72/1 | Upper control panel control unit | 1.7 |
| → A70/1 | Analog clock | 3 | ||
| → S1 | Exterior lamp switch | 1.3 | ||
| → S6/2 | Cockpit switch group | 3 | ||
| Z81/5 | Circuit 58d COC connector sleeve | |||
| TELE AID | ← N10/1 | Front SAM control unit with fuse and relay module | C5.19 | |
| As of 06/08 | → A2/30 | Navigation processor | 1.3 | |
| TELE | → AID | S76/15 Electric parking brake switch | 2 | |
| →Z81z2 | Circuit 58d connector sleeve | 2 | ||
| Z81/11 | Front passenger circuit 58d connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | C5.1 |
| → N22/1 | AAC [KLA] control unit | B.19 | ||
| → R41/1 | Left side air outlet potentiometer | 4 | ||
| → R41/2 | Right side air outlet potentiometer | 4 | ||
| → R41/3 | Front center air outlet potentiometer | 4 | ||
| Z111 (2) | Voltage supply connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | C5.14 |
| →N22/1 | AAC [KLA] control unit | B.28 | ||
| →A32 | AC air recirculation unit | 2 |
