Speed Limit Assist, block diagram - GF54.30-P-0012-02LE

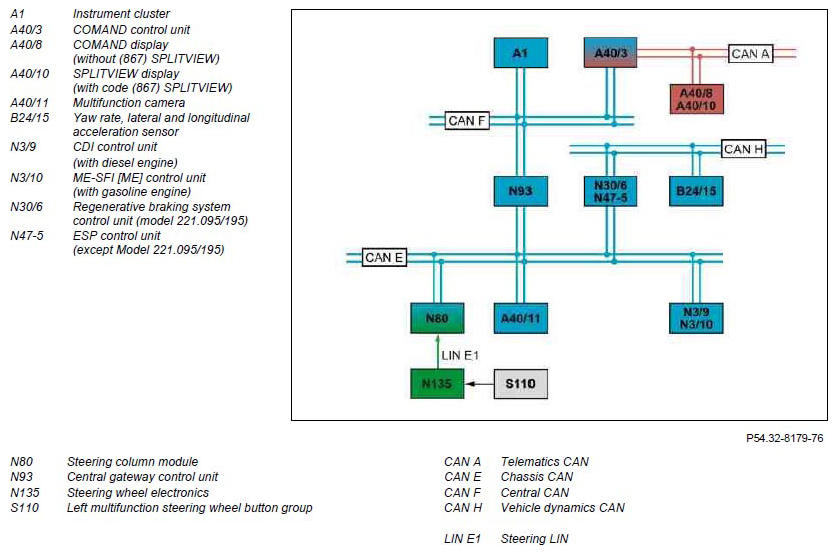

Fig 1: Identifying Speed Limit Assist Block Diagram

G07638275

Courtesy of MERCEDES-BENZ USA
