Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LE

Shown on model 221.0

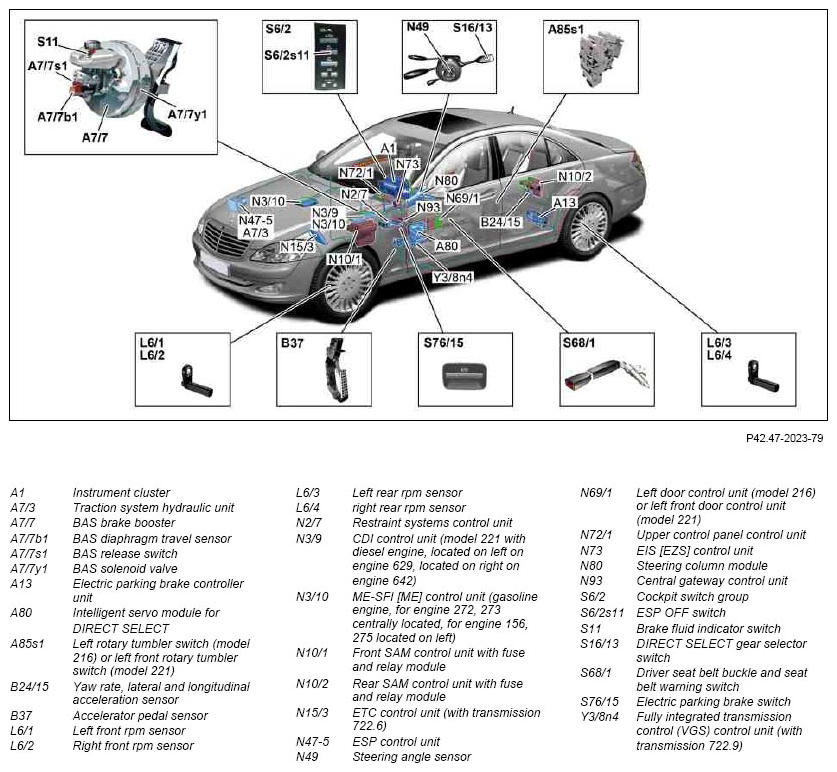

Fig 1: Identifying Adaptive Brake (ABR) Components Location - Shown On Model 221.0

G07641374

Courtesy of MERCEDES-BENZ USA
