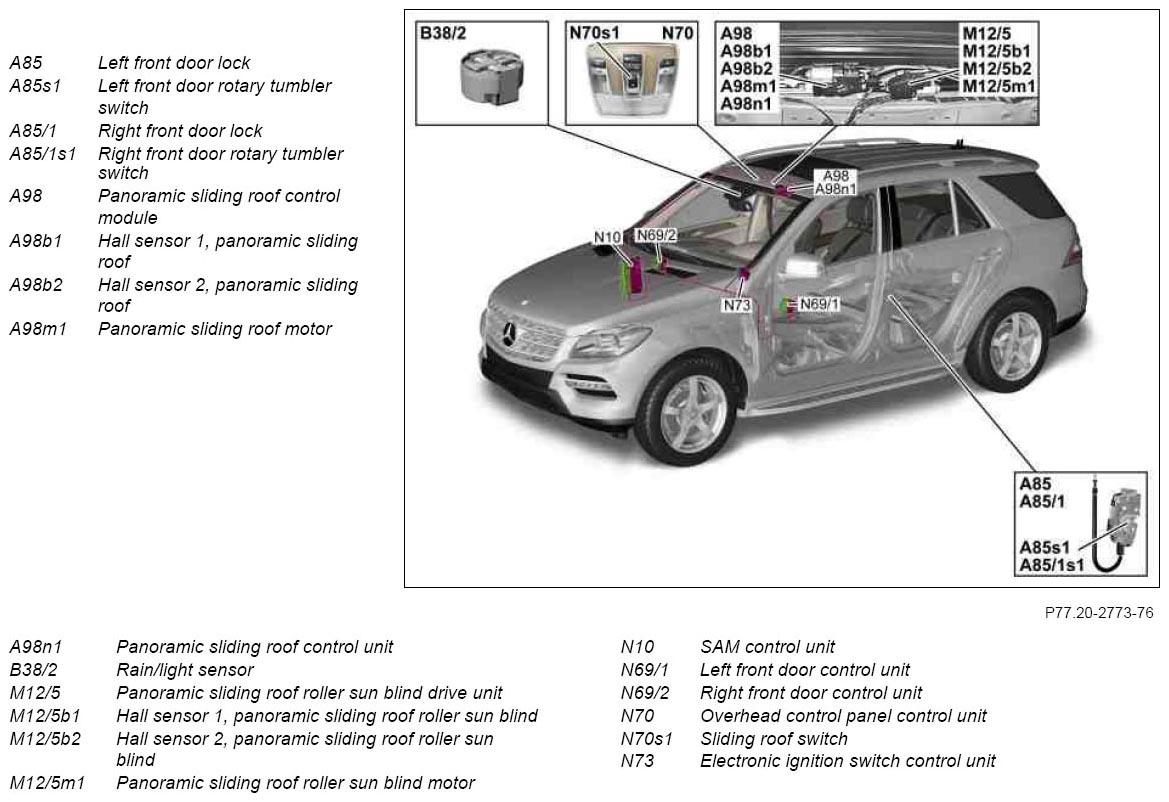

Overview of system components, panoramic sliding sunroof - GF77.20-P-9991GR
MODEL 166 with CODE (413) Panoramic glass roof with top sliding roof
Shows model 166.0
| Panoramic sliding sunroof control module, component description | A98, A98n1 | GF77.20-P-4106GR |
| SAM control unit, component description | N10 | GF54.21-P-4157GR |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001GR |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009GR |
| Overhead control panel control unit, component description | N70 | GF82.20-P-5216GR |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001GR |
| Table of contents, function description for electric panoramic sliding sunroof | see GF77.20-P-0997GR |
