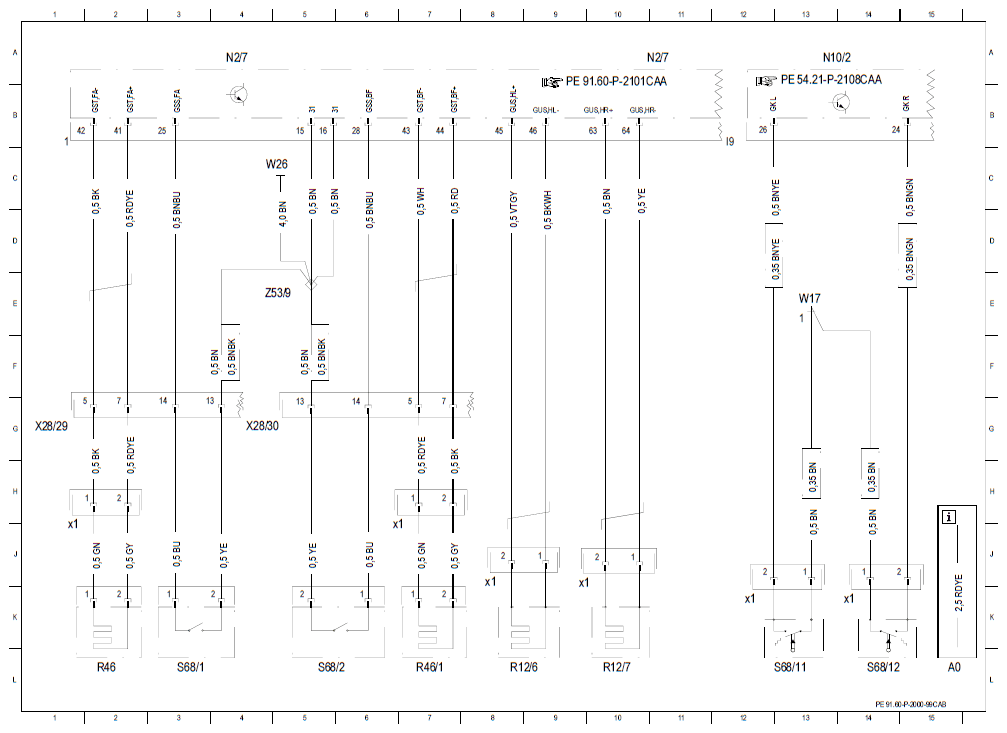

| A0 |
Explanation of color codes |
15L |
| N10/2 |
Rear SAM control module with fuse and relay module |
13A |
| N2/7 |
Restraint systems control module |
4A |
| N2/7 |
Restraint systems control module |
10A |
| R12/6 |
Left rear ETR ignition squib |
8L |
| R12/6x1 |
Left rear ETR squib connector |
8K |
| R12/7 |
Right rear ETR ignition squib |
10L |
| R12/7x1 |
Right rear ETR squib connector |
9K |
| R46 |
Driver buckle ETR squib |
2L |
| R46/1 |
Front passenger buckle ETR squib |
7L |
| R46/1x1 |
Front passenger buckle emergency tensioning retractor squib connector |
6J |
| R46x1 |
Driver buckle emergency tensioning retractor squib connector |
1J |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
3L |
| S68/11 |
Left rear seat belt buckle switch |
12L |
| S68/11x1 |
Left rear seat belt buckle switch connector |
12K |
| S68/12 |
Right rear seat belt buckle switch |
14L |
| S68/12x1 |
Right rear seat belt buckle switch connector |
14K |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
5L |
| W17 |
Ground (right rear seat) |
13G |
| W26 |
Ground (restraint systems control module) |
4C |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
1G |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
4G |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
4E |
