| A0 |
Explanation of color codes |
31L |
| A45 |
Fanfare horns and airbag clock spring contact |
16J |

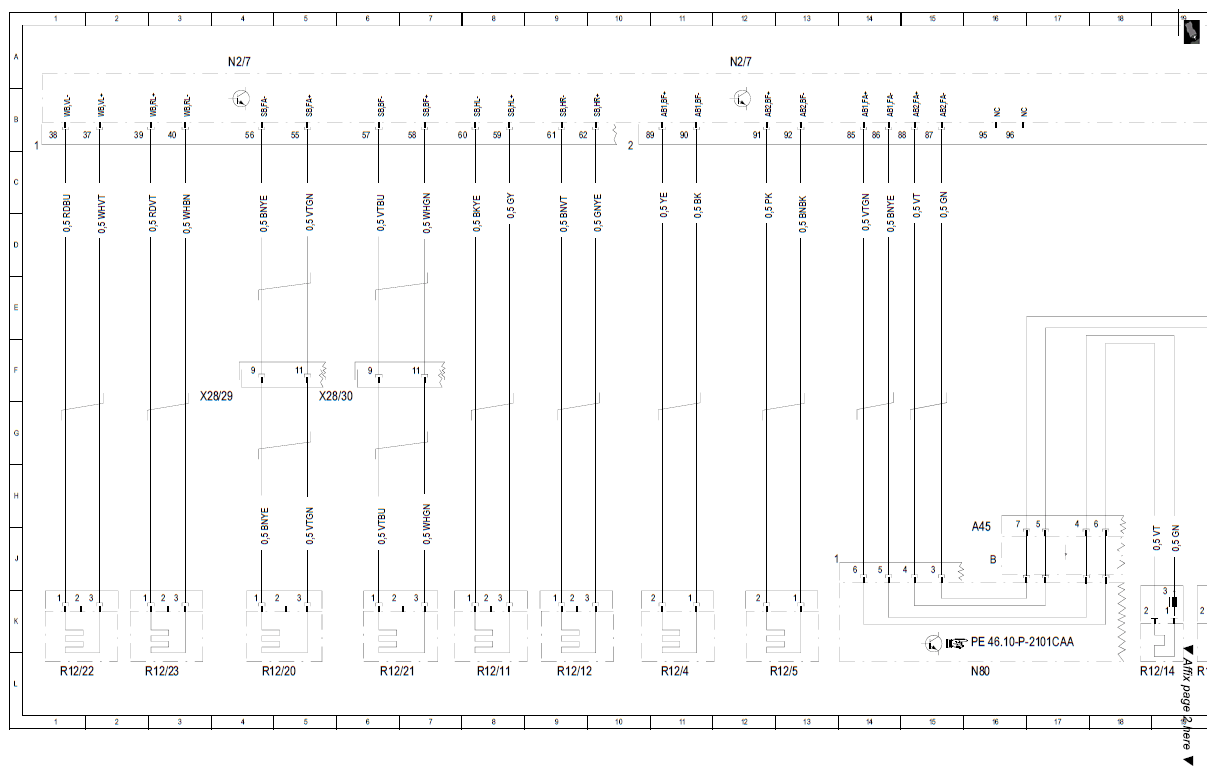

| N2/7 |
Restraint systems control module |
4A |
| N2/7 |
Restraint systems control module |
12A |
| N2/7 |
Restraint systems control module |
20A |
| N80 |
Steering column module |
16L |
| R12/11 |
Left rear side airbag ignition squib |
8L |
| R12/12 |
Right rear side airbag ignition squib |
9L |
| R12/13 |
Driver airbag ignition squib 1 |
19L |
| R12/14 |
Driver airbag ignition squib 2 |
18L |
| R12/20 |
Left front side airbag ignition squib |
4L |
| R12/21 |
Right front side airbag ignition squib |
6L |
| R12/22 |
Left rear window airbag ignition squib |
1L |
| R12/23 |
Right rear window airbag ignition squib |
2L |

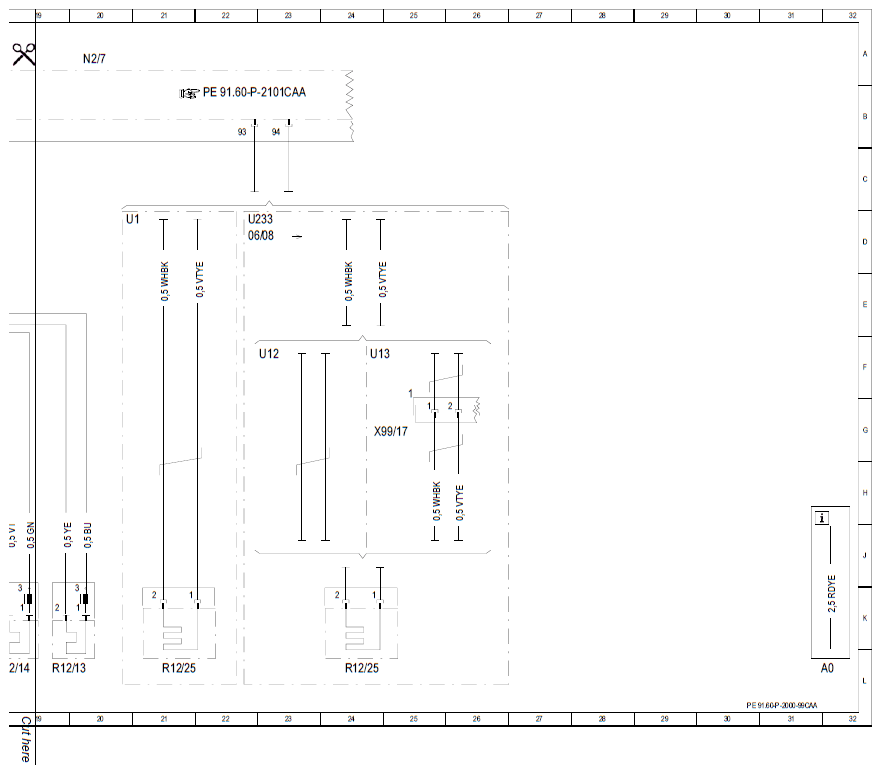

| R12/25 |
Driver kneebag ignition squib |
21L |
| R12/25 |
Driver kneebag ignition squib |
24L |
| R12/4 |
Front passenger airbag ignition squib 1 |
11L |
| R12/5 |
Front passenger airbag ignition squib 2 |
12L |
| U1 |
Valid for {{USA}} |
20D |
| U12 |
Valid for left-hand steering |
22F |
| U13 |
Valid for right-hand steering |
24F |
| U233 |
Valid for knee airbag |
22D |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
3G |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
5G |
| X99/17 |
Kneebag separation point |
24G |
