Emergency call system, location of components - GF82.95-P-0004-01LAU

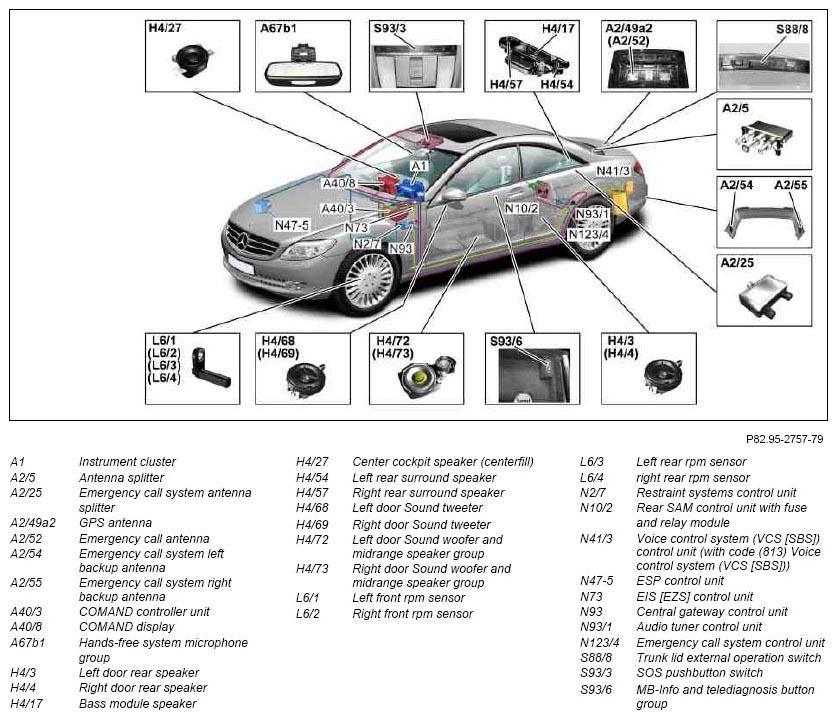

Fig 1: Identifying Emergency Call System Components Location

G07642165

Courtesy of MERCEDES-BENZ USA
