Emergency call system block diagram - GF82.95-P-0004-02LAU

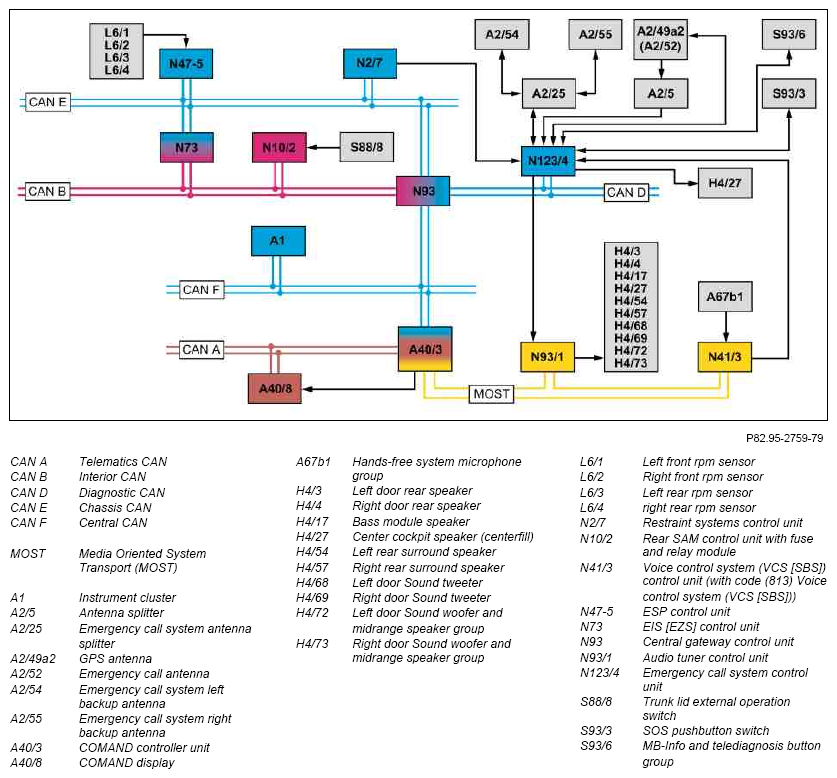

Fig 1: Identifying Emergency Call System Block Diagram

G07642166

Courtesy of MERCEDES-BENZ USA
